Finish Milling of inner-wall T groovesfor large face

    Machining features: Sphericalsurface grooves

    Machines: Five-axial machine center or three-axialmilling

    Tool selection principles: ball-nose milling cutter issuitable for spherical surface machining.

    Tool：BMR04-032-G32-M

    Insert：ZOHX3207-GF

    Cutting data：V=40m/min，fz=0.1mm/z

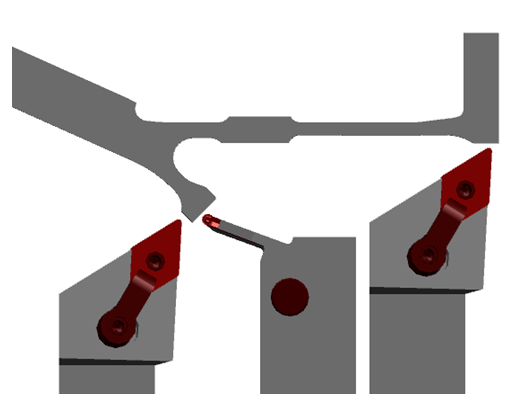

    Machining features: Turning base-level, thinnest partonly 3.5mm, severe deformation

    Machines: CNC vertical lathe

    Toolselection principles: inserts for finishing of high-temperature alloyThin-walled components require sharp geometry to reduce cutting force, highindexing accuracy and repeatability. Safety and fasten Tool holder champing. 55° D type insert can ensure high insert nose strength; also possess sharpnessgeometry and precision ground of locating surface to improve indexing accuracyand repeatability. M type clamping system ensures safety and fastens champing.

    Tool：MDJNL3232P15

    Insert：DNEG150608-NF

    Cutting data：V=40m/min，fr=0.15mm/r

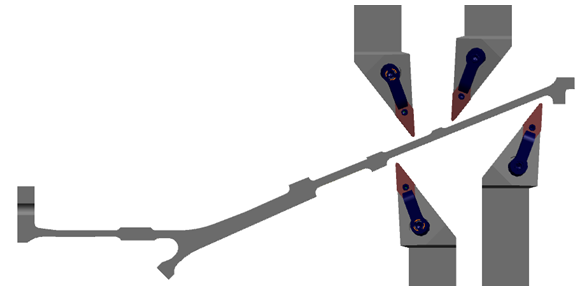

Machiningfeatures: Turning base-level, thinnest part only

3.5mm, severe deformation.

Machines: CNC vertical lathe

Tool selection principles: inserts for finishing of high

temperature alloyThin-walled components require sharp

geometry to lower cutting force, highindexing accuracy and

repeatability. Safety and fasten Tool holder champing. 35° V

type insert can ensure high insert nose strength; also possess

sharpnessgeometry and precision ground of locating surface

to improve indexing accuracyand repeatability. M type

clamping system ensures safety and fastens

champing.

Tool：MVJNR3232P16

Insert：VNEG160408-NF

Tool：MVJNL3232P16

Insert：VNEG160408-NF

Cutting data：V=50m/min，fr=0.15mm/r
