Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2
2024-12-06

Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

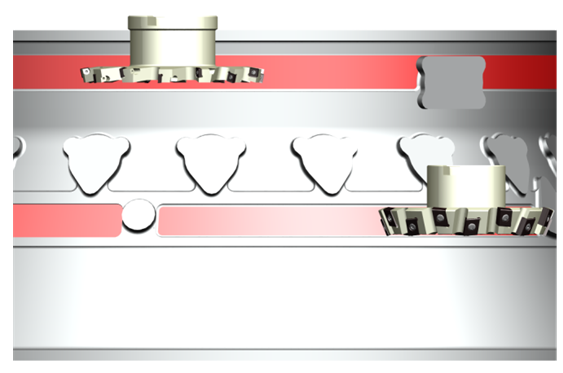

    External ring grooves milling:

    Machining features: larger dimension ofring grooves

    Machines:three-axial milling machine

    Toolselection principles: High efficiency is required. According to the features ofcomponents structure and angle restriction tailor-made side and face millingcutter is designed. MPHT series insert is suitable for machining of grooves onplane surface, while CNE544R08-2 is suitable for machining of groove on slope.

Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

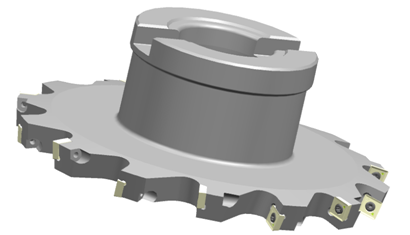

    Straight:SMPX-160-B40-MP08-14(MPHT080305-DM)

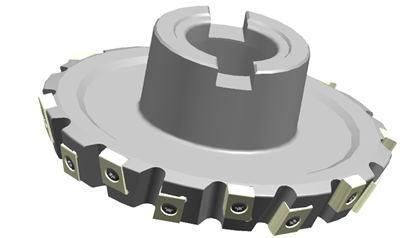

    Slope:SMPX-160X25-B40-CNE544-16(CNE544R08-2)

    Cutting data:V=50m/min,fz=0.15mm/z


Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

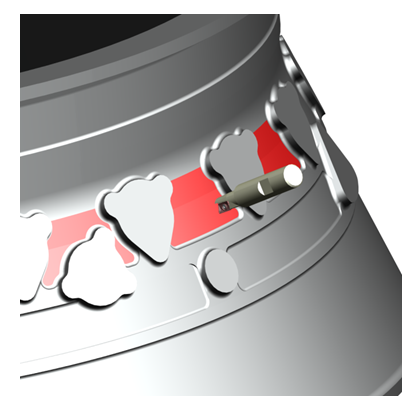

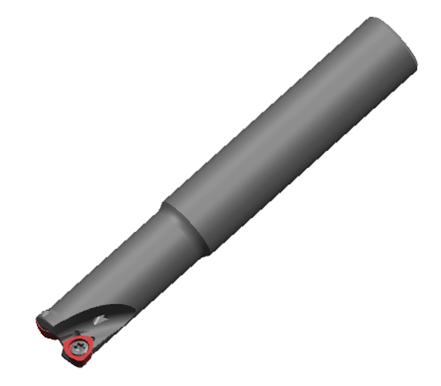

    Profilemilling of external boss

    Machining features: small gap in bossand small depth of cutting

    Machines: Five-axial millingmachine

    Tool selection principles: Due tonarrowed space for machining

    choosing plunge milling by endmills with smalldiameter can

    improve efficiency. XMR01 tool with straight shank is suitable

    forthis situation.

    Tool:XMR01-020-G20-WP05-02-M

    Insert:WPGT050315ZSR

    Cuttingdata:V=80m/min,fz=0.12mm/z

Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

    Face milling of external boss:

    Machining features: face millingwith small working allowance

    Machines: five-axial milling machine

    Tool selection principles: high-temperature alloy millingshould focus on machining efficiency and cost. FMA01/FMA02 series mounted SEETinsert, high-feed milling series, are both can be applied in high-temperaturealloy machining.

    Tool:XMR01-063-A22-WP08-04

    Insert:WPGT080615ZSR

    Cutting data:V=80m/min,fz=0.15mm/z

Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

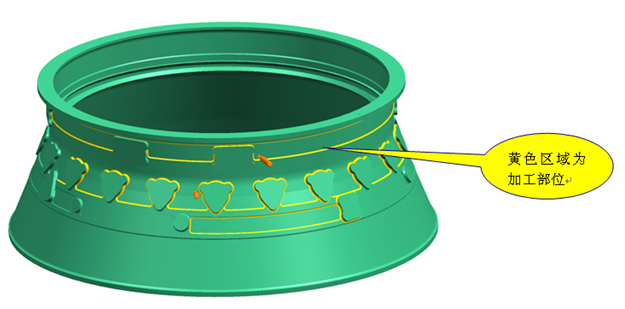

    yellow area is the machiningpart

Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

    External boss profile clearance milling

    Machines : five-axial millingmachine

    Tool selection principles: solid carbide endmills forhigh temperature, GM ball-nose solid carbide endmill can processhigh-temperature alloy with stable performance.

    Tool:PM-2B-R3.0

    Cutting data Cuttingdata:V=30m/min,fz=0.06mm/z

Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

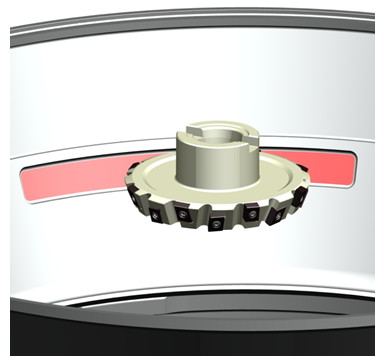

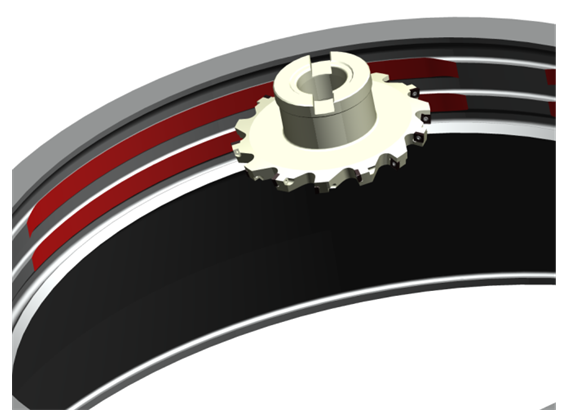

    Inner-wall ring grooves milling

    Machining features: Ring grooves on face with large circle size.

    Machines: three-axial milling machine

    Toolselection principles: It is the critical to improve milling efficiency andreduce cost, with a same tool is able to machine external ring grooves on slopeface.

    Tool:SMPX-160-B40-MP08-14

    Insert:MPHT080305-DM

    Cutting data:V=50m/min,fz=0.15mm/z

Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

    Milling of ring grooves on inner-wall for large face (1)

    Machining Features: Ring grooveon slope with large circle size.

    Machines: three-axial millingmachine

    Tool selection principles: It is the critical to improvemilling efficiency and reduce cost, with a same tool is able to machineexternal ring grooves on slope face.

    Tool:SMPX-160X25-B40-CNE544-16

    Insert:CNE544R08-2

    Cutting data:V=50m/min,fz=0.15mm/z

Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

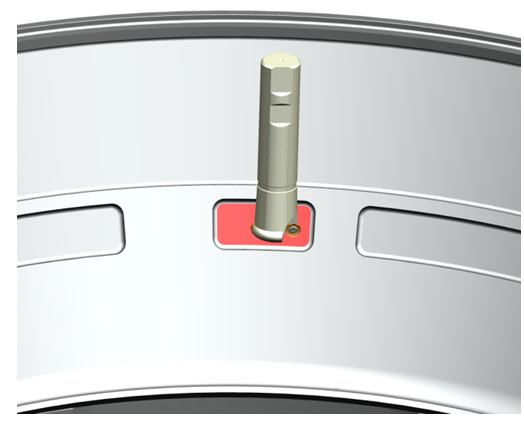

    Milling ofring grooves on inner-wall for large face (2)

    Machining Features: Parts of circle size is small cannotbe machined by side and face milling cutter

    Machines: Five-axialmachine center or three-axial milling machine.

    Tool selection principles: FMR01 series tool holder,mounted with RCKT round insert, it is suitable for machining of material withthis structure and improve milling efficiency.

    Tool:FMR01-032-XP25-RC10-02

    Insert:RCKT10T3MO-DM

    Cutting data:V=50m/min,fz=0.15mm/z

Cutting Tools Application in Aerospace Industry on front Case in Combustion Chamber 2

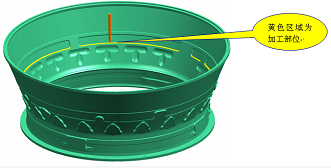

    yellow area is the machining part

Clearancemilling of inner-wall ring grooves profile for large face

Machines: Five-axial machinecenter or three-axial milling

Tool selection principles: With A same tool is able tomachine external boss profile clearance.

Tool:PM-2B-R3.0

Cutting data:V=30m/min,fz=0.06mm/z
