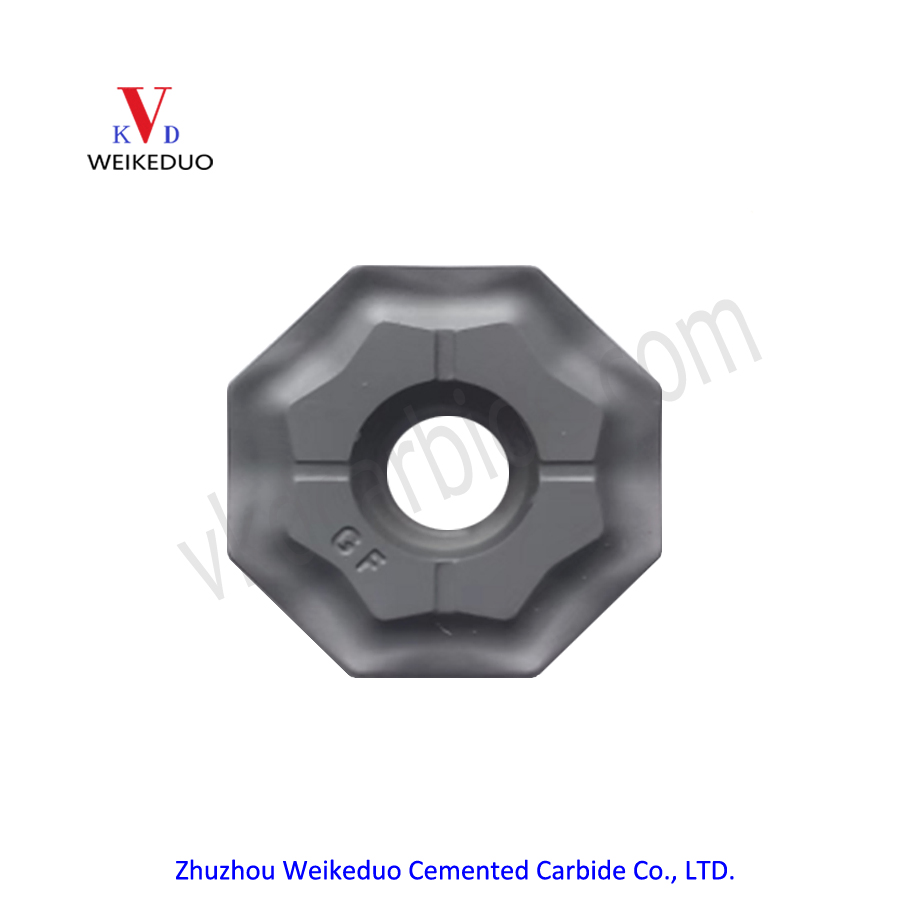

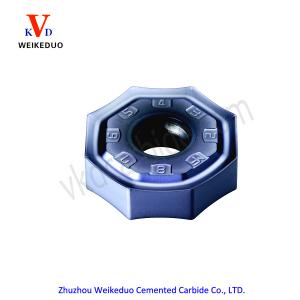

ONMX060408-GF Milling Inserts

ON** 16-edge Face Milling inserts, sharp cutting edge.

milling inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

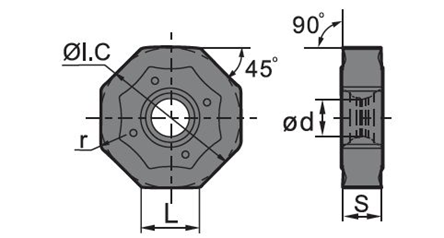

Description	Value
Insert included angle	135 Degree
Cutting edge length	6.15 mm
Inscribed circle diameter	15.8 mm
Insert thickness	5.54 mm
Corner radius	0.8 mm
Tolerance class insert	M
Insert mounting style code	3 - Counter bore for screws with taper angle from 40° to 60°
Standard designation	ONMX060408
Standard designation ANSI

ONMX-GF

ONMX060408-GF Milling Inserts

Grade: VKD8298/VKD8296

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel		○	●	●
	Stainless steel		○	●	●
	Cast lron
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable

Factory Tour

undefined

Zhuzhou Weikeduo Cemented Carbide Co., LTD.

ADDRESS：Building B, Smart Cube, No. 460, Jinshan Road, Hetang District, Zhuzhou City, Hunan Province,China

Phone：+86 137 8633 2019 +86 186 7080 5093

Wechat&Whats: +86 137 8633 2019 +86 186 7080 5093

Email: cathy@weikeduocarbide.com admin@weikeduocarbide.com

SEND US MAIL

Please message and we will get back to you!

RELATED PRODUCTS

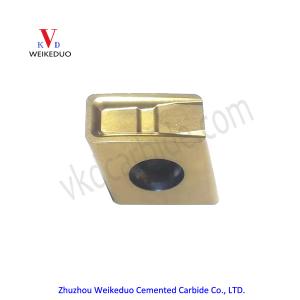

AXMT123508PEER-G Milling Inserts

RDM(K)T10T3(1204)MO-TN Milling Inserts

RDMT10T3MO-TN Milling Inserts RDMT1204MO-TN Milling Inserts

RPMT10T3(1204)MO-K(T) Milling Inserts

3PKT150508R-M-K Milling Inserts

CNGX

CNGX1608

BLMP - R - MM

BLMP0904R-MM

CNHX - T

CNHX100508T

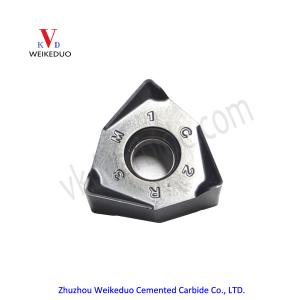

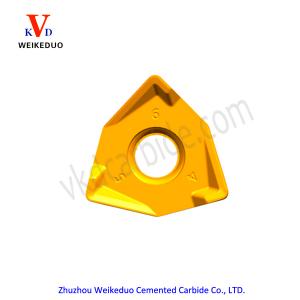

WNMU080608EN-SM Milling Inserts

Suitable for steel, stainless steel and cast iron high feed milling processing, large rake angle and low resistant forces, cutting is stable, the maximum Ap is 8mm.

WNMU080608EN-GM Milling Inserts

Suitable for steel, stainless steel and cast iron high feed milling processing, good universality.

WNGX080608R-F7 Milling Inserts

Square Shoulder Milling Inserts, suitable for steel, stainless steel and cast iron rough and Semi-finishing milling, slot milling processing, full pressing type inserts.

WNEX080608R-M4/M5 Milling Inserts

Square Shoulder Milling Inserts, suitable for steel, stainless steel and cast iron rough and Semi-finishing milling, slot milling processing, full pressing type inserts.

XNEX080608TR-MD13/MD15 Milling Inserts

Square Shoulder Milling Inserts, suitable for steel, stainless steel and cast iron rough milling, slot milling processing, full pressing type inserts.

XNMX080608TR-MD15 Milling Inserts

Square Shoulder Milling Inserts, suitable for steel, stainless steel and cast iron rough milling, slot milling processing, full pressing type inserts.

XNGJ0905ANSN-GD Milling Inserts

45° FACE MILLING INSERTS.

HNEX0905ANSN-M5 Milling Inserts

HN** Milling Insert

HNGF090504-MF Milling Inserts

HN** 60 Degree Face Milling Insert.

HNGF090520-ML Milling Inserts

HN** 60 Degree Face Milling Insert.

HNPJ130720ANSN-HD Milling Inserts

HN** 45 Degree Face Milling Insert.

ONMU050408-GM Milling Inserts

ON** Face Milling Insert.

ONMX080608-MF Milling Inserts

ON** 16-edge Face Milling Insert

OFMT050405TR-NN Milling Inserts

OF** 16-edge Face Milling Insert

OFMT05T305TN-NN Milling Inserts

OF** 16-edge Face Milling Insert

OFET070405TN-M16 Milling Inserts

OF** 16-edge Face Milling Insert

LNMU0303ZER-M Milling Inserts

LNMX100608PNR-MM Milling Inserts

LNKX1506PNTN-(A/G) Milling Inserts

LNMT1306PNTR-FW Milling Inserts

LNHU130608R-L55T Milling Inserts

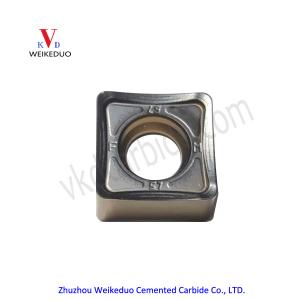

SNMU1206ANEN-GM Milling Inserts
