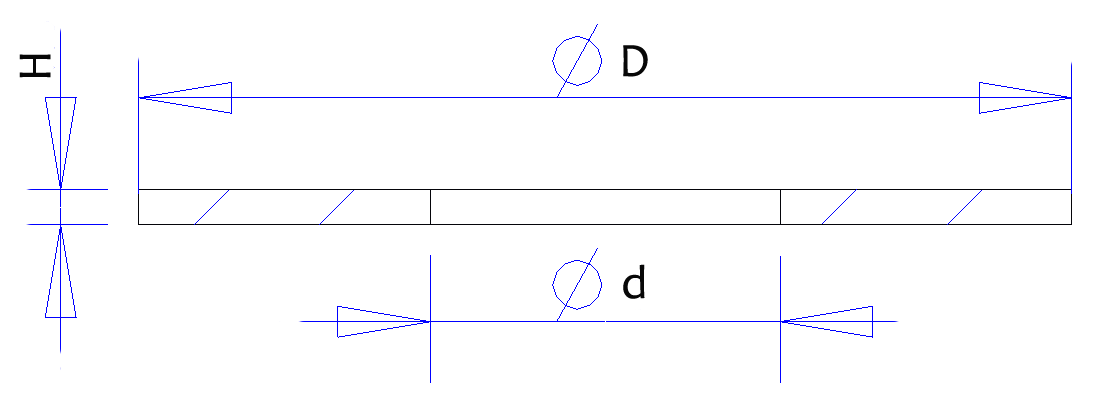

ØD selection range: 10 mm ≤ ØD ≤ 300 mm
Ød selection range: 10 mm ≤ Ød≤ 300 mm
H selection range: 0.5 mm ≤ H ≤ 30 mm
GESAC Standard | Unground (mm ) | Ground (mm ) | ||
Range | Tol. | Range | Tol. | |
0<&≤30 | 0, +0.3 | 0<&≤100 | ±0.005 | |
30<&≤50 | 0, +0.7 | |||
50<&≤100 | 0, +1.5 | |||
100<&≤300 | 0, +3.0 | 100<&≤300 | ±0.010 |
Note: The dimensions and shape can be customized according to the customer's requirements.
It is suitable for Mechanical Processing Pumps, Compressors, Centrifuges, Mixers, Metallurgy, Machinery, Steel, Petrochemicals, Construction, Automotive, Hardware and electronics.
Surface Roughness (Optional)
Type | Accuracy |
Polished | 0.00~0.05μm |
Ground | 0.00~0.10μm |
Dull Finished | 0.10~0.20μm |
Classifcation of Grain Size of Cemented Carbide (lS04499-2-2008)
Category | Grain size of WC (μm) |
Nano | <0.2 |
Ultrafine | 0.2∽0.5 |
Submicron | 0.5∽0.8 |
Fine | 0.8∽1.3 |
Medium | 1.3∽2.5 |
Coarse | 2.6∽6.0 |
Extra coarse | >6.0 |
Customized performance parameters of Cemented Carbide
Range | |||||
Co (%) | <8 | 8~15 | 15~22 | >22 | Customized |
HRA | <90 | 90~92 | 92~94 | >94 | Customized |
T.R.S (N/mm2) | <2400 | 2400~3600 | 3600~4000 | >4000 | Customized |
KIC (MPa●m1/2) | <7 | 7~8 | 8~9 | >9 | Customized |
