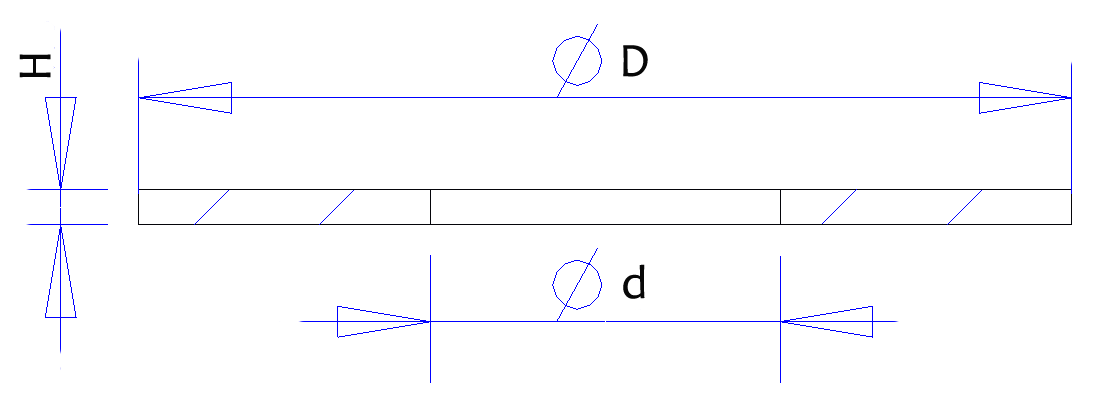

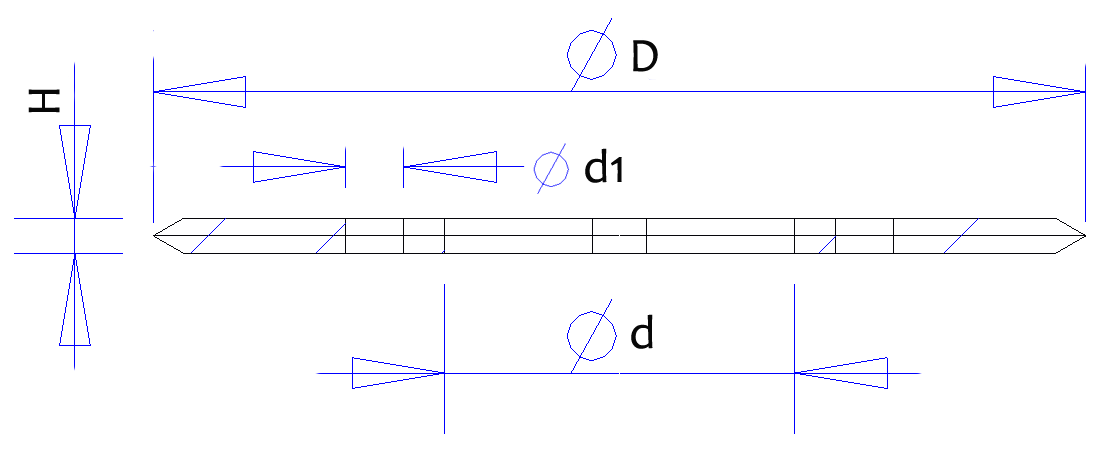

ØD selection range: 10 mm ≤ ØD ≤ 330 mm
Ød selection range: 10 mm ≤ Ød≤ 250 mm
H selection range: 0.3 mm ≤ H ≤ 5 mm
GESAC
Standard
| Unground (mm ) | Ground (mm ) |
| Range | Tol. | Range | Tol. |
| 0<&≤30 | 0, +0.3
| 0<&≤100 | ±0.005 |
| 30<&≤50 | 0, +0.7 |
| 50<&≤100 | 0, +1.5 |
| 100<&≤300 | 0, +3.0
| 100<&≤300 | ±0.010 |
Note: The dimensions and shape can be customized according to the customer's requirements.
It is suitable for Packaging Industry, Li-ion Battery Industry, Cermet, Recycling Industry, Sheet Metal
Industry, Tabacco & Cigarette Industry, Medical Industry, Chemical Fiber Industry, Printing Industry,
Capacitor Industry and others.
Surface Roughness (Optional)
Type
| Accuracy |
| Polished | 0.00~0.05μm |
| Ground | 0.00~0.10μm |
| Dull Finished | 0.10~0.20μm |
Classifcation of Grain Size of Cemented Carbide (lS04499-2-2008)
Category
| Grain size of WC (μm) |
Nano
| <0.2
|
Ultrafine
| 0.2∽0.5 |
Submicron
| 0.5∽0.8 |
Fine
| 0.8∽1.3 |
Medium
| 1.3∽2.5 |
Coarse
| 2.6∽6.0 |
Extra coarse
| >6.0 |
Customized performance parameters of Cemented Carbide
| Range
|
Co (%)
| <8
| 8~15
| 15~22
| >22
| Customized |
HRA
| <90
| 90~92
| 92~94
| >94
| Customized |
T.R.S (N/mm2)
| <2400
| 2400~3600
| 3600~4000
| >4000
| Customized |
KIC (MPa●m1/2)
| <7
| 7~8
| 8~9
| >9
| Customized |
