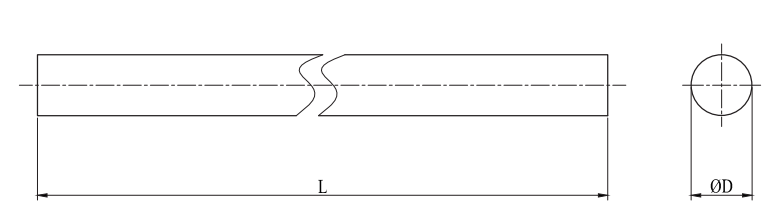

规格 Type | 直径 ØD | 长度 L |
BR1030050/70/100 | 3 | 50/70/100 |
BR1040050/70/100 | 4 | 50/70/100 |
BR1060050/70/100 | 6 | 50/70/100 |
BR1080050/70/100 | 8 | 50/70/100 |
BR1100050/70/100 | 10 | 50/70/100 |
BR1120050/70/100 | 12 | 50/70/100 |
BR1140050/70/100 | 14 | 50/70/100 |
BR1160050/70/100 | 16 | 50/70/100 |
BR1180050/70/100 | 18 | 50/70/100 |
BR1200050/70/100 | 20 | 50/70/100 |
GESAC Standard | Ground ØD (mm ) | L (mm) | |
Range | Tol. | Tol. | |
3≤ØD≤20 | h5/h6 | 0, +1.0 |
Classifcation of Grain Size of Cemented Carbide (lS04499-2-2008)
Category | Grain size of WC (μm) |
Nano | <0.2 |
Ultrafine | 0.2∽0.5 |
Submicron | 0.5∽0.8 |
Fine | 0.8∽1.3 |
Medium | 1.3∽2.5 |
Coarse | 2.6∽6.0 |
Extra coarse | >6.0 |
Grade Selection Guide
Workpiece | Type of Cutting Tools | First Chioce | Second Chioce | Diamond coating | ||
Steel | Endmill | Roughing | □ | □ | □ | |
Finishing | □ | □ | □ | |||
Drill | □ | □ | □ | |||
Stainless steel | Endmill | Roughing | □ | □ | □ | |
Finishing | □ | □ | □ | |||
Drill | □ | □ | □ | |||
Cast lron | Endmill | Roughing | □ | □ | □ | |
Finishing | □ | □ | □ | |||
Drill | □ | □ | □ | |||
Nonferrous Material | Endmill | Roughing | □ | □ | □ | |
Finishing | □ | □ | □ | |||
Drill | □ | □ | □ | |||
Heat Resistance Material | Endmill | Roughing | □ | □ | □ | |
Finishing | □ | □ | □ | |||
Drill | □ | □ | □ | |||
Hardened Material | Endmill | Roughing | □ | □ | □ | |
Finishing | □ | □ | □ | |||
Drill | □ | □ | □ | |||
Others | Graphite | □ | □ | □ | ||
CFRP | □ | □ | □ | |||
PCB | □ | □ | □ |
Note: Shape can be customized according to the customer's requirements.
