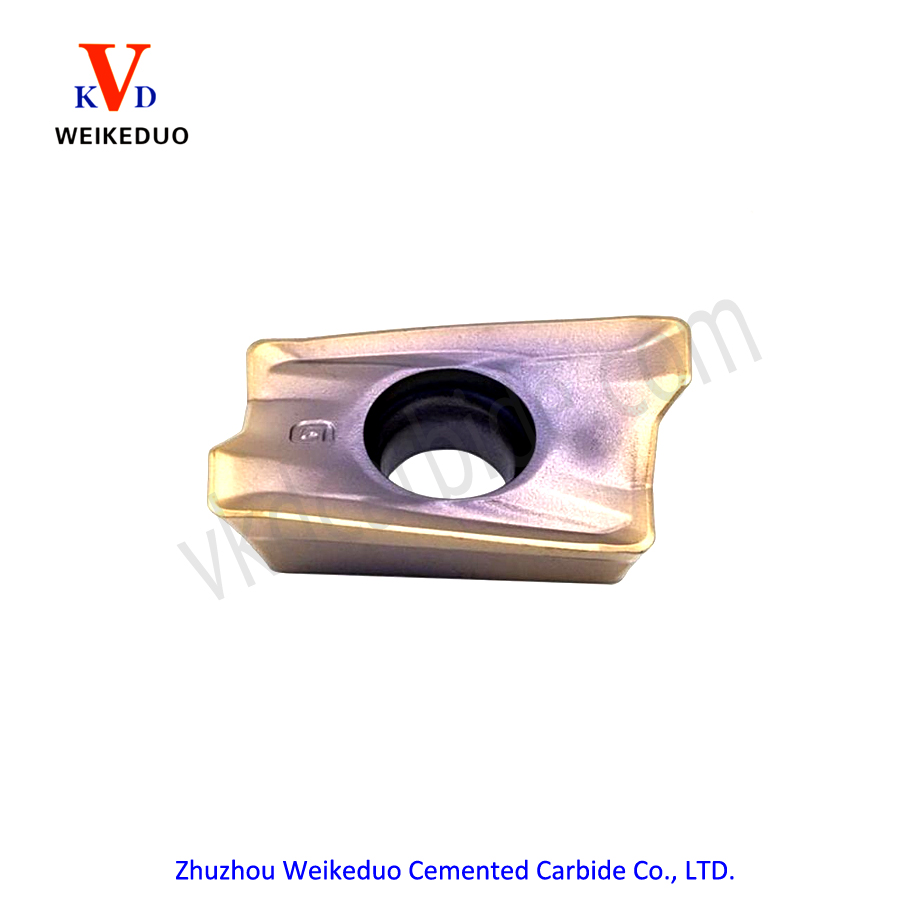

AXMT123508PEER-G Milling Inserts

milling inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

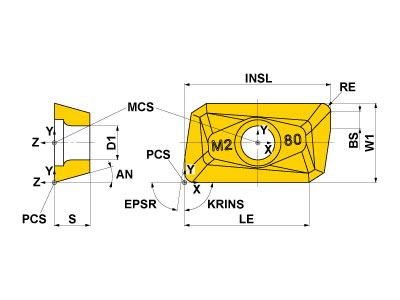

Description	Value
Insert included angle	85 Degree
Cutting edge length	12 mm
Inscribed circle diameter	6.6 mm
Insert thickness	3.5 mm
Corner radius/Wiper edge length	0.8 mm
Tolerance class insert	M
Insert mounting style code	3 - Counter bore for screws with taper angle from 40° to 60°
Standard designation	AXMT123508PEER
Standard designation ANSI

AXMT123508PEER-G Milling Inserts

Grade: VKD155

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel	●	●	●
	Stainless steel	●	●	●
	Cast lron	●	●	●
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
