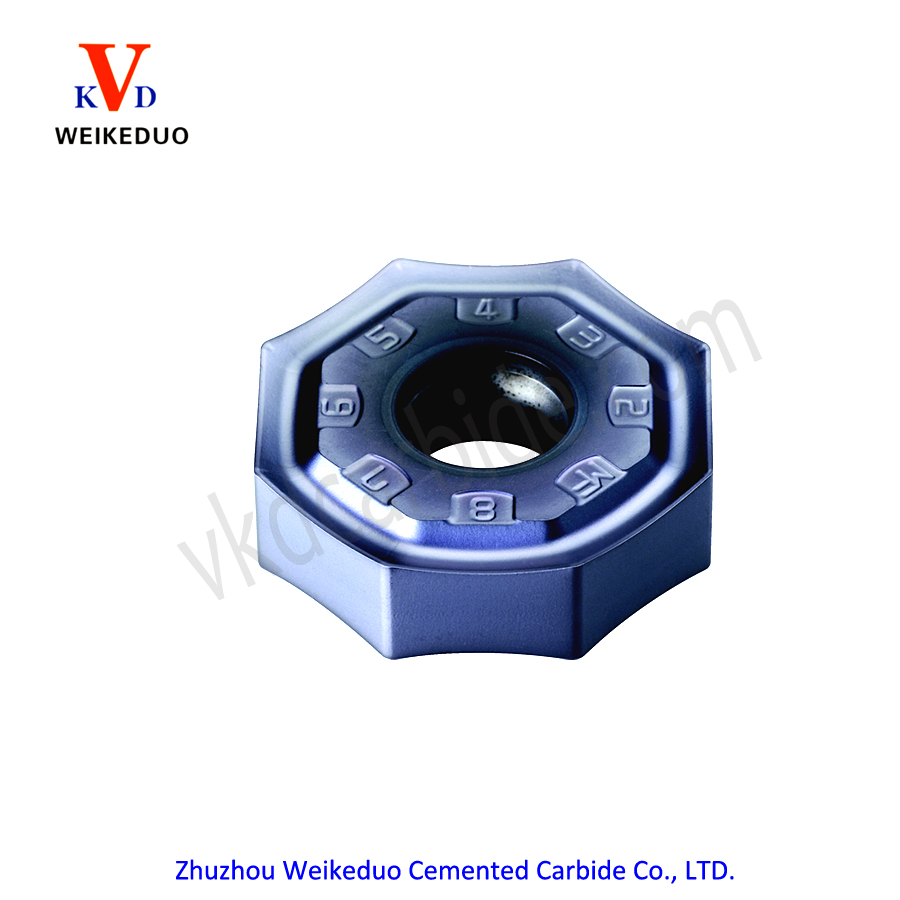

ONMX080608-MF Milling Inserts

ON** 16-edge Face Milling Insert

milling inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

Description	Value
Insert included angle	135 Degree
Cutting edge length	8.4 mm
Inscribed circle diameter	20.2 mm
Insert thickness	6 mm
Corner radius	0.8 mm
Tolerance class insert	M
Insert mounting style code	3 - Counter bore for screws with taper angle from 40° to 60°
Standard designation	ONMX080608
Standard designation ANSI

ONMX080608-MF Milling Inserts

Grade: VKD8298/VKD8296

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel		○	●	●
	Stainless steel		○	●	●
	Cast lron
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
