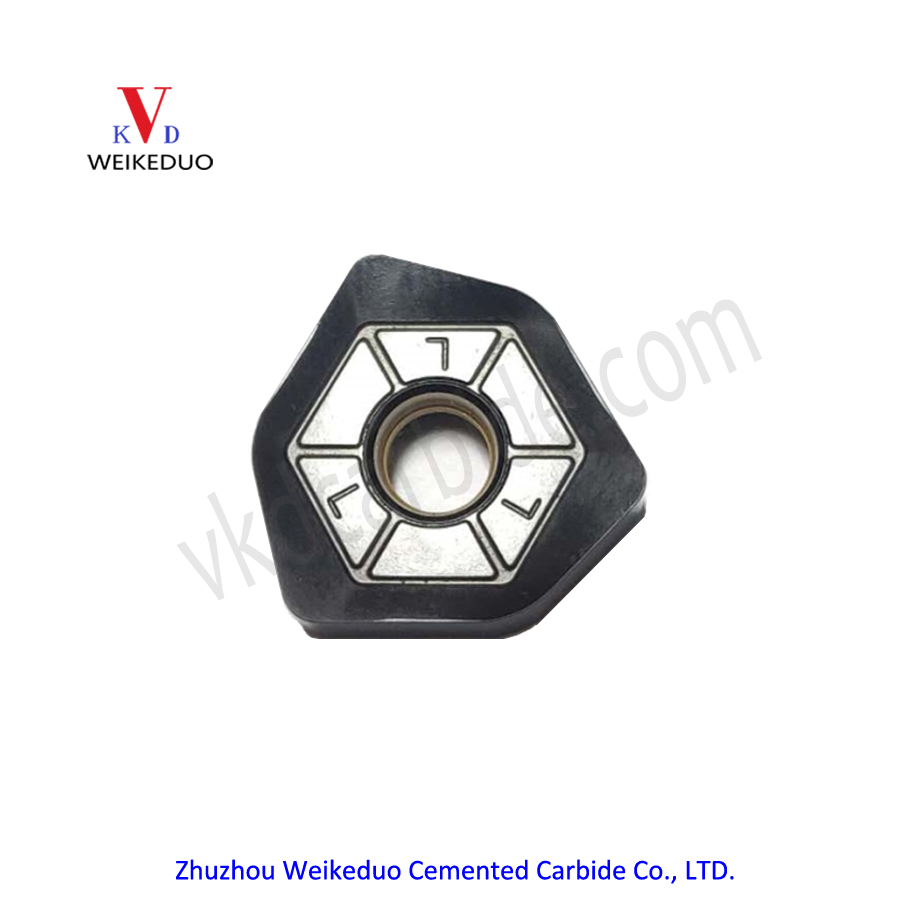

XNGJ0905ANSN-GD Milling Inserts

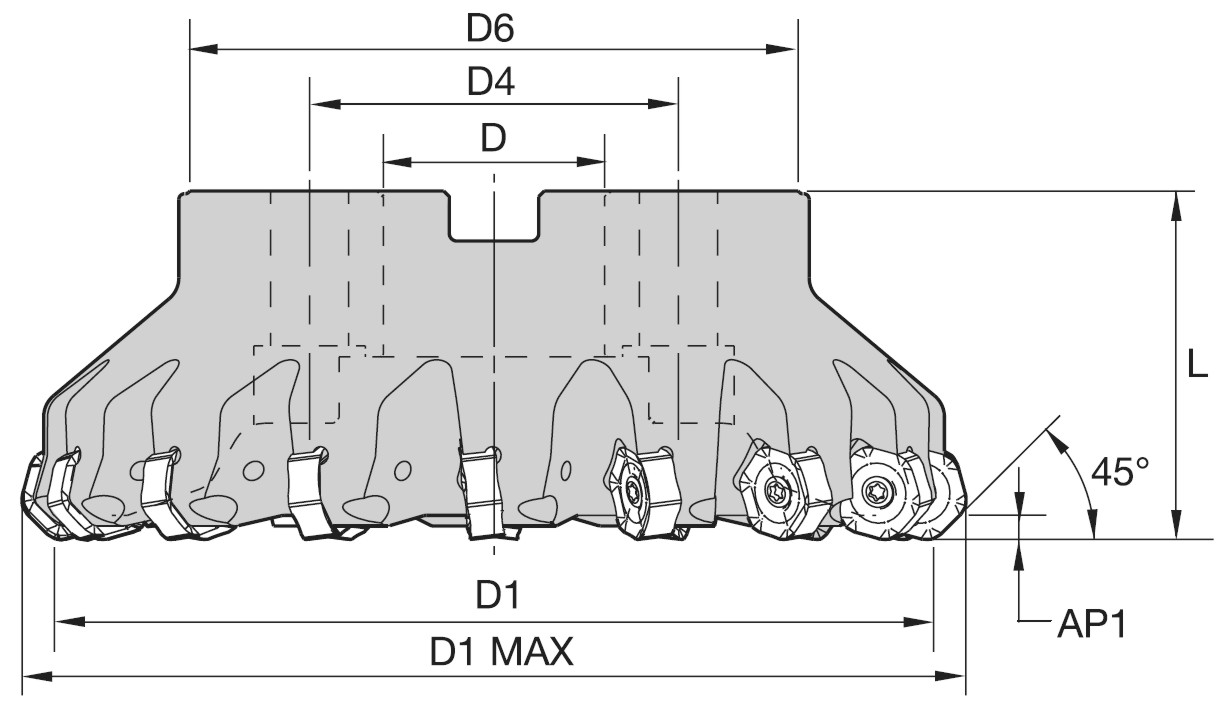

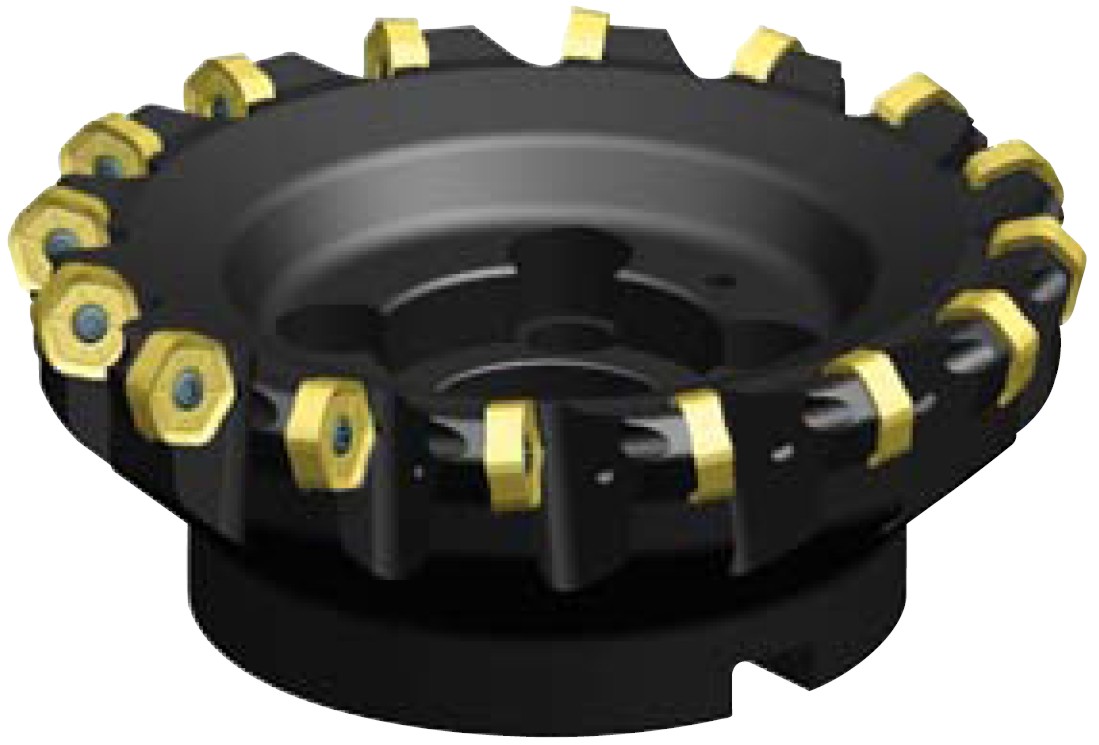

45° FACE MILLING INSERTS.

milling inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

XNGJ - SN - GD

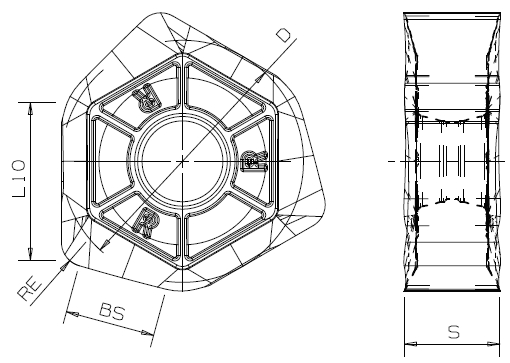

Description	Value
Insert included angle	85 Degree
Cutting edge length	9.6 mm
Inscribed circle diameter	15.875 mm
Insert thickness	6.256 mm
Corner radius	1.6 mm
Tolerance class insert	G
Insert mounting style code	4 - Counter bore for screws with taper angle from 70° to 90°
Standard designation	XNGJ0905ANSN
Standard designation ANSI	XNGJ535ANSN

XNGJ - SN - GD

XNGJ0905ANSN-GD Milling Inserts

Grade: VKD118

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel		○	○
	Stainless steel		●	●
	Cast lron
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
