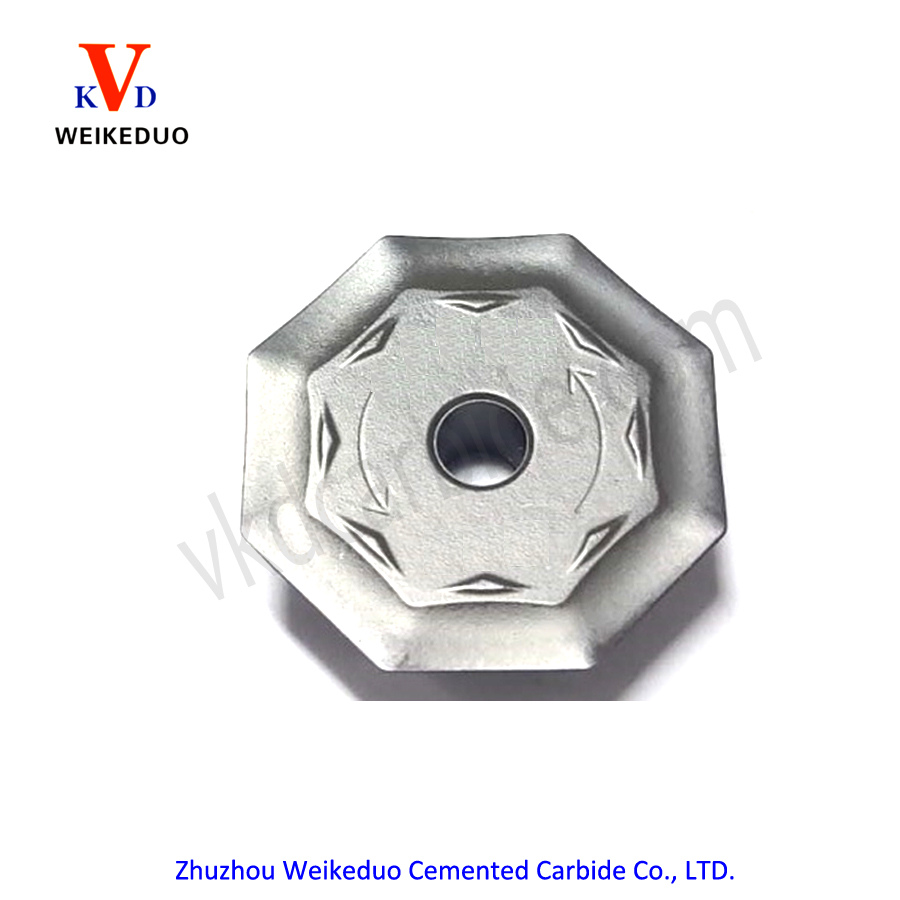

OFET070405TN-M16 Milling Inserts

OF** 16-edge Face Milling Insert

milling inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

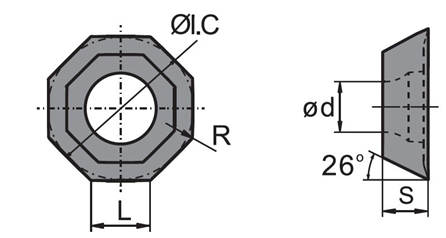

Description	Value
Insert included angle	135 Degree
Cutting edge length	7.427 mm
Inscribed circle diameter	17.94 mm
Insert thickness	4.56 mm
Corner radius	0.5 mm
Tolerance class insert	M
Insert mounting style code	3 - Counter bore for screws with taper angle from 40° to 60°
Standard designation	OFET070405TN
Standard designation ANSI

OFET070405TN-M16 Milling Inserts

Grade: VKD155/VKD118

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel			●	●
	Stainless steel			●	●
	Cast lron			○	○
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
