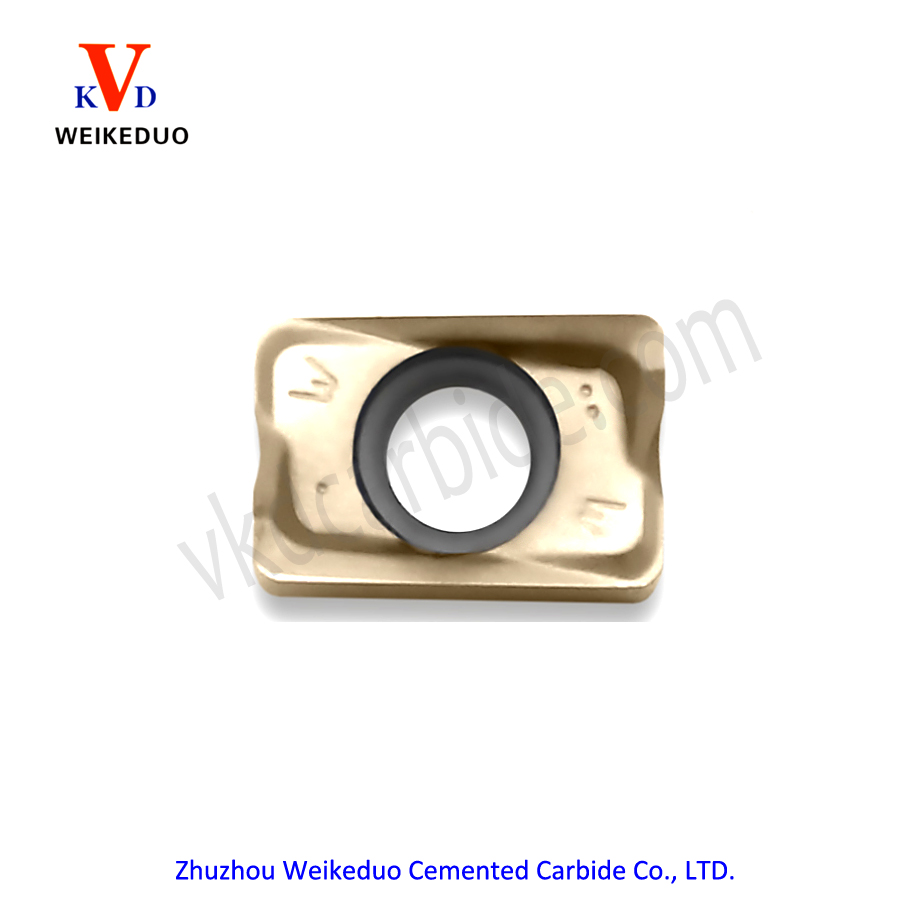

LNMX100608PNR-MM Milling Inserts

milling inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

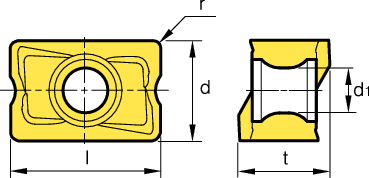

Description	Value
Insert included angle	90 Degree
Cutting edge length	10 mm
Inscribed circle diameter	6.5 mm
Insert thickness	6.5 mm
Corner radius	0.8 mm
Tolerance class insert	M
Insert mounting style code	3 - Counter bore for screws with taper angle from 40° to 60°
Standard designation	LNMX100608PNR
Standard designation ANSI

Customized products: LNMX151008PNR-MM

LNMX100608PNR-MM Milling Inserts

Grade: VKD137

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel				●	high feed
	Stainless steel				●	high feed
	Cast lron
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
