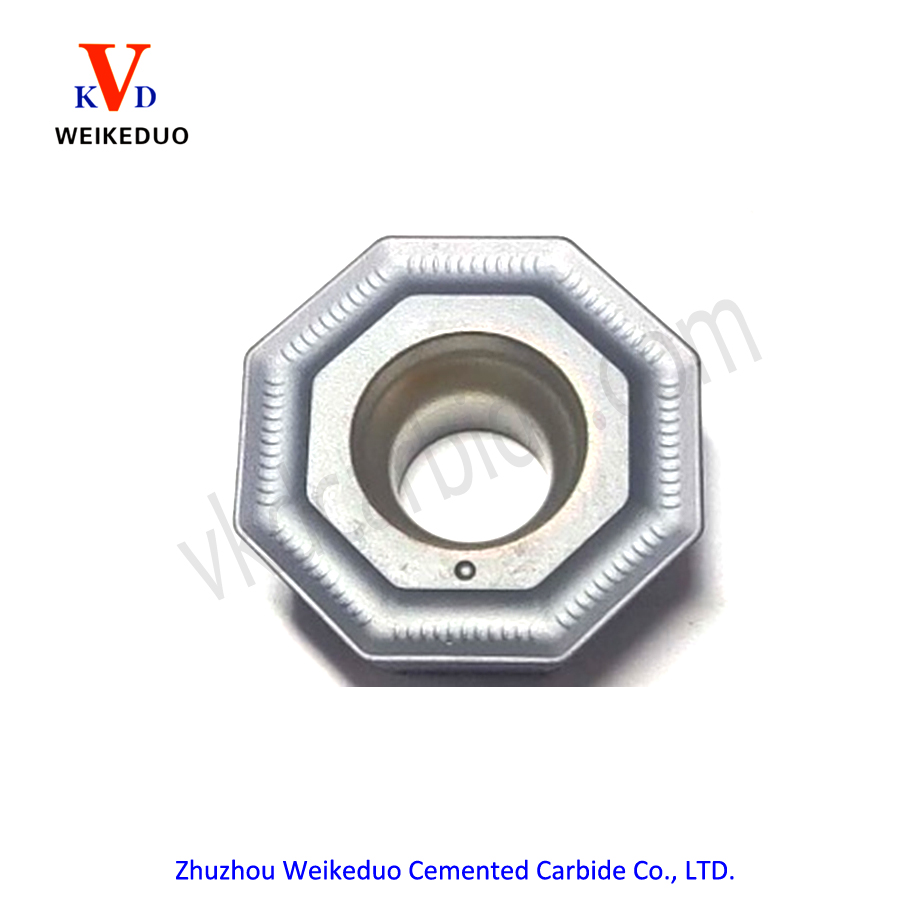

OFMT050405TR-NN Milling Inserts

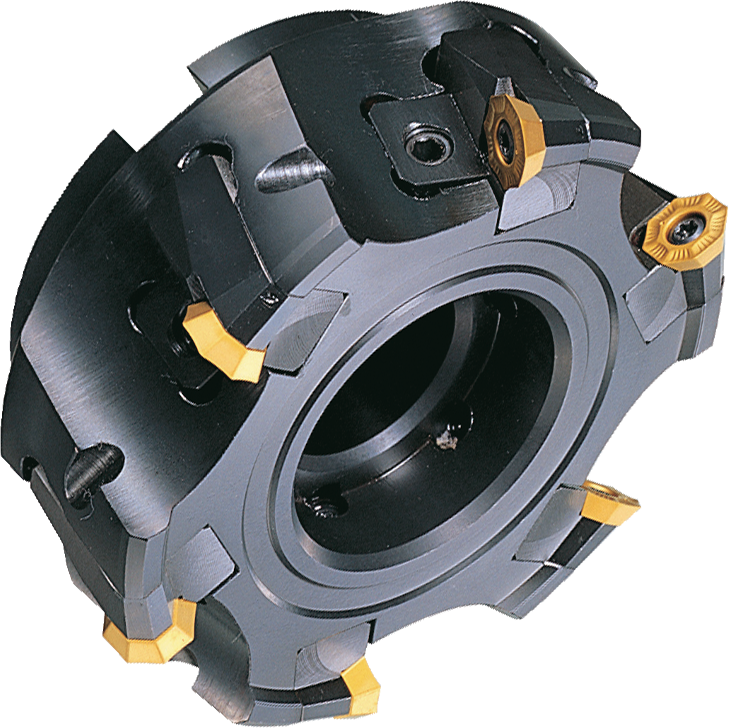

OF** 16-edge Face Milling Insert

milling inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

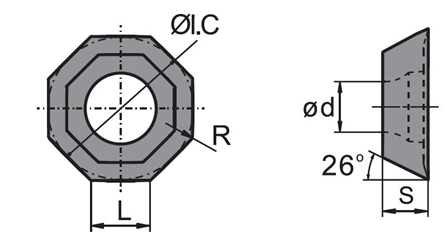

Description	Value
Insert included angle	135 Degree
Cutting edge length	5.46 mm
Inscribed circle diameter	13.18 mm
Insert thickness	4.76 mm
Corner radius	0.5 mm
Tolerance class insert	M
Insert mounting style code	3 - Counter bore for screws with taper angle from 40° to 60°
Standard designation	OFMT050405TR
Standard designation ANSI

OFMT050405TR-NN Milling Inserts

Grade: VKD130

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel			●	●
	Stainless steel			●	●
	Cast lron			●	●
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
