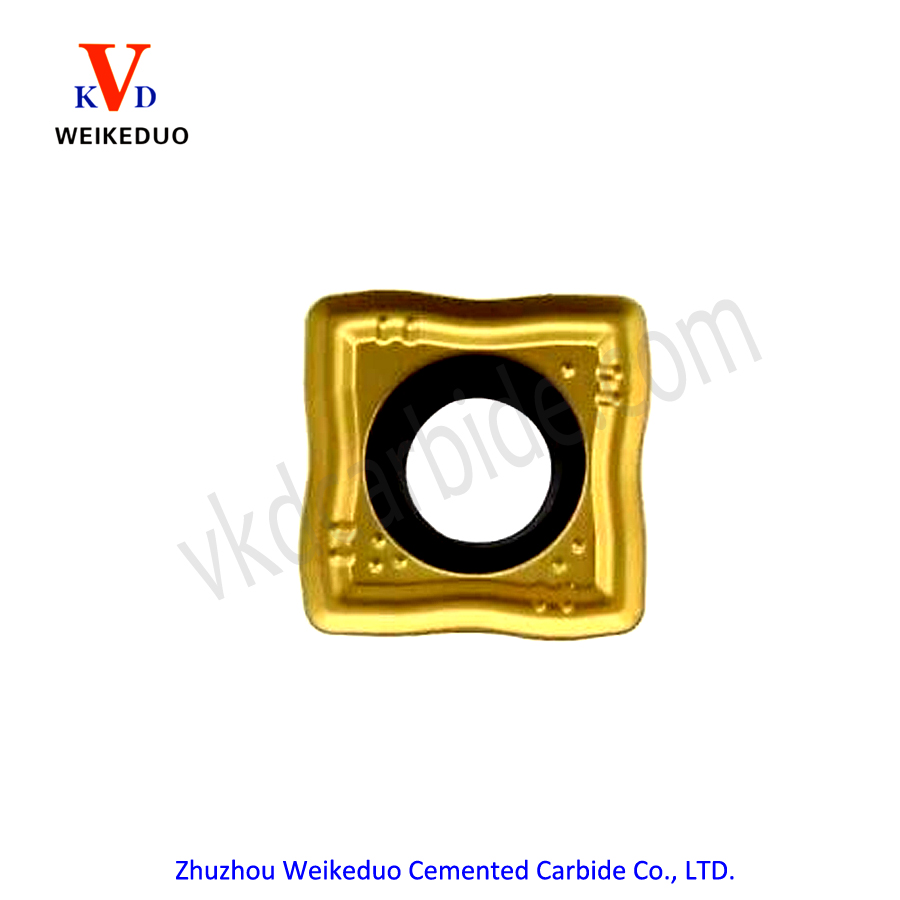

SOMT-DP Milling Inserts

SOMT050204-DP SOMT060204-DP SOMT070306-DP SOMT08T306-DP SOMT09T308-DP SOMT11T308-DP

milling inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

Description	Value
Insert included angle	90 Degree
Cutting edge length	4.1/4.9/5.6/6.7/7.6/9.4 mm

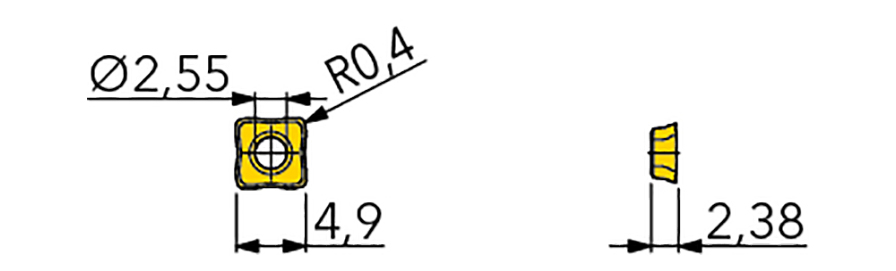

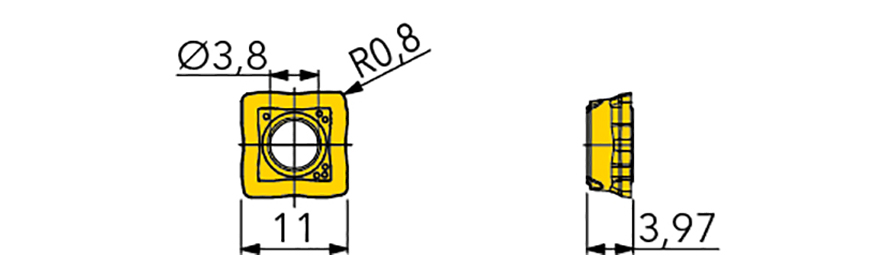

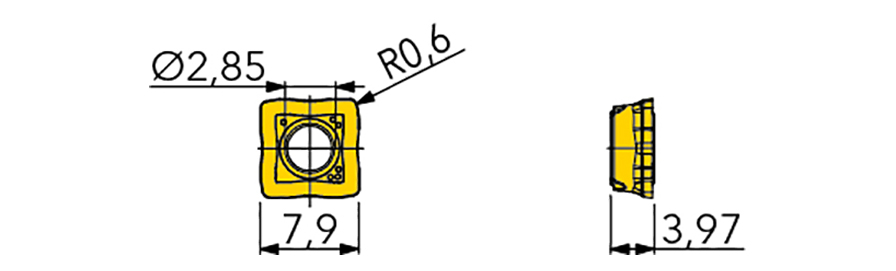

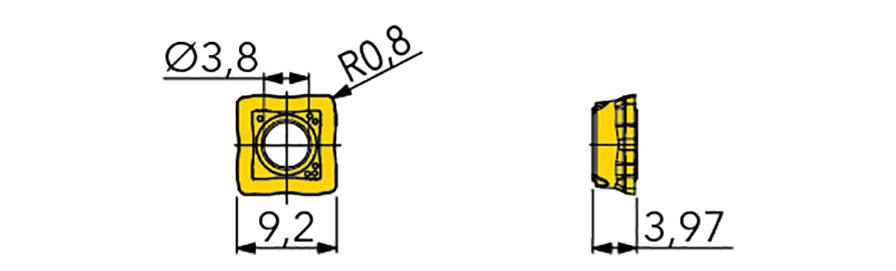

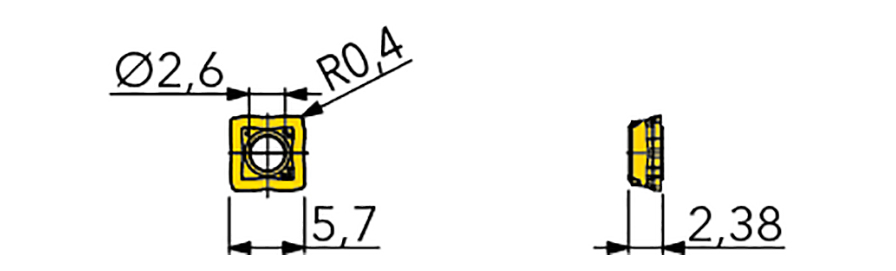

Inscribed circle diameter	4.9/5.7/6.8/7.9/9.2/11 mm
Insert thickness	2.38/2.38/2.8/3.97/3.97/3.97 mm
Corner radius/Wiper edge length	0.4/0.4/0.6/0.6/0.8/0.8 mm
Tolerance class insert	M
Insert mounting style code	3 - Counter bore for screws with taper angle from 40° to 60°
Standard designation	SOMTXXXXXX
Standard designation ANSI

SOMT-DP Milling Inserts

Grade: VKD137

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel			●	●
	Stainless steel			●	●
	Cast lron			●	●
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
