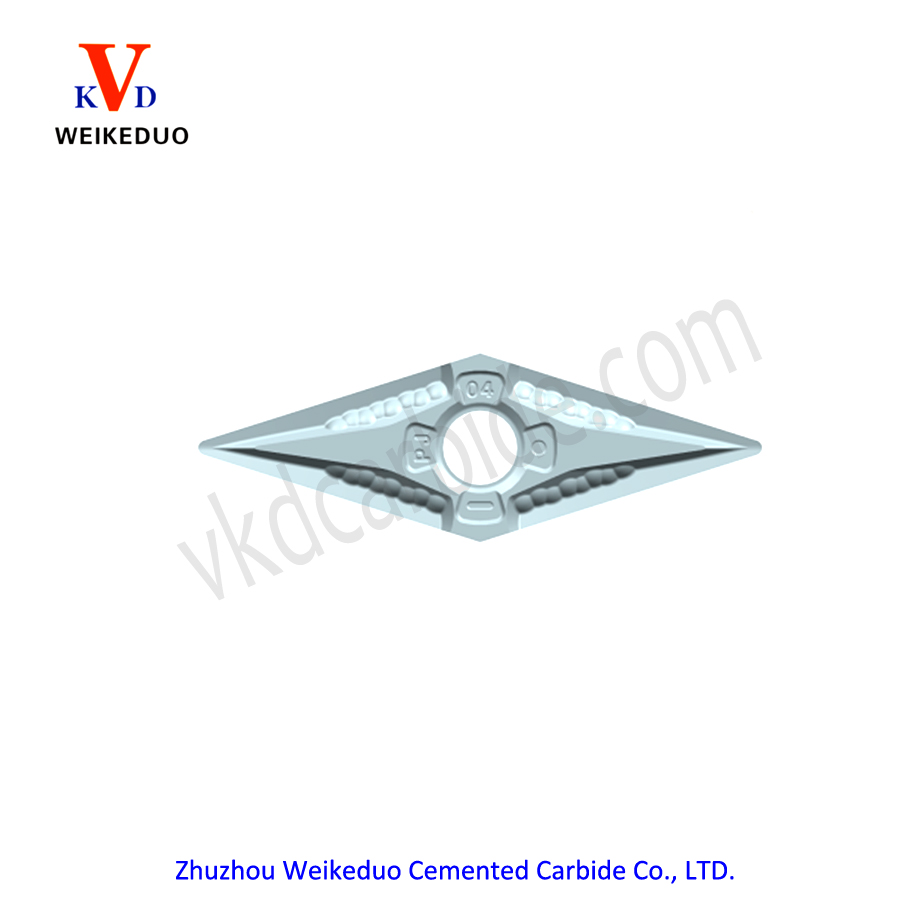

VNMG-PJ-X Turning Inserts

ISO CNC Inserts. Suitable for Finishing and Semi-finishing ISO M/S material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

PROJECT DETAIL

VNMG-PJ-B

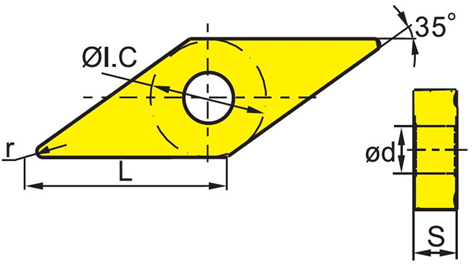

SIZE	S	Φd	r
VNMG160402-PJ-B	4.76	3.81	0.2
VNMG160404-PJ-B	4.76	3.81	0.4

VNMG-PJ-X Turning Inserts

Grade: VKD3126/VKD8296

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel		○	○
	Stainless steel		●	●
	Cast lron
	Nonferrous Material
	Heat Resistance Material		●	●
	Hardened Material

● -Priority ○ -Suitable
