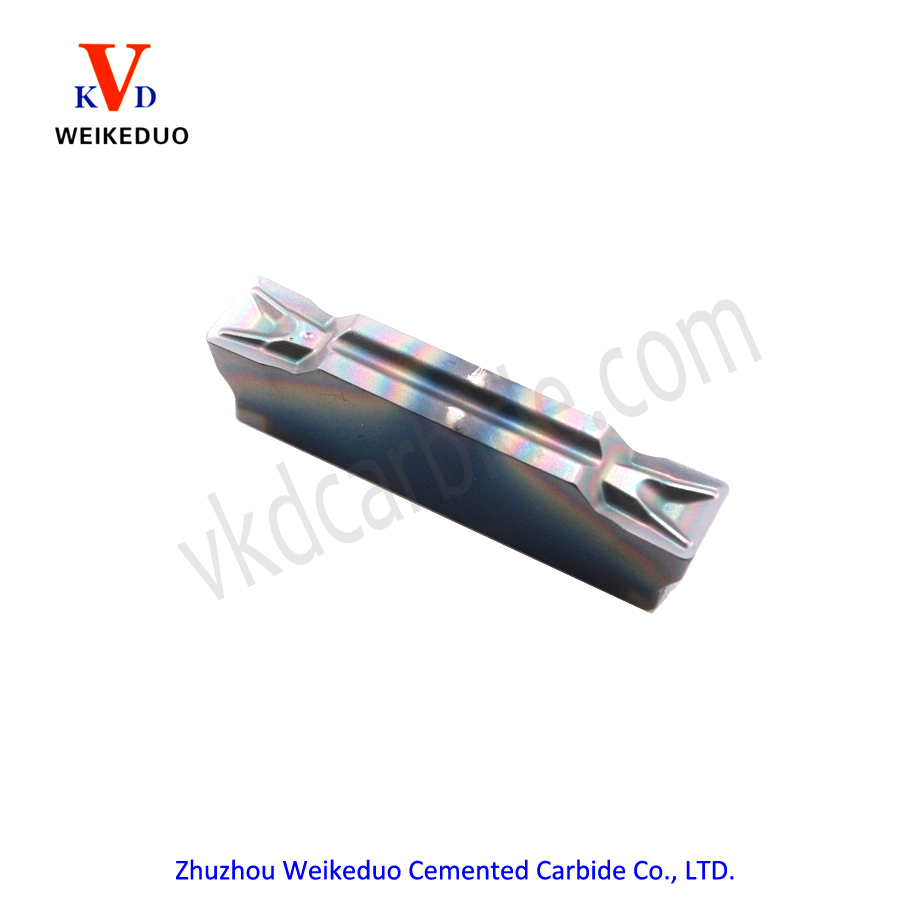

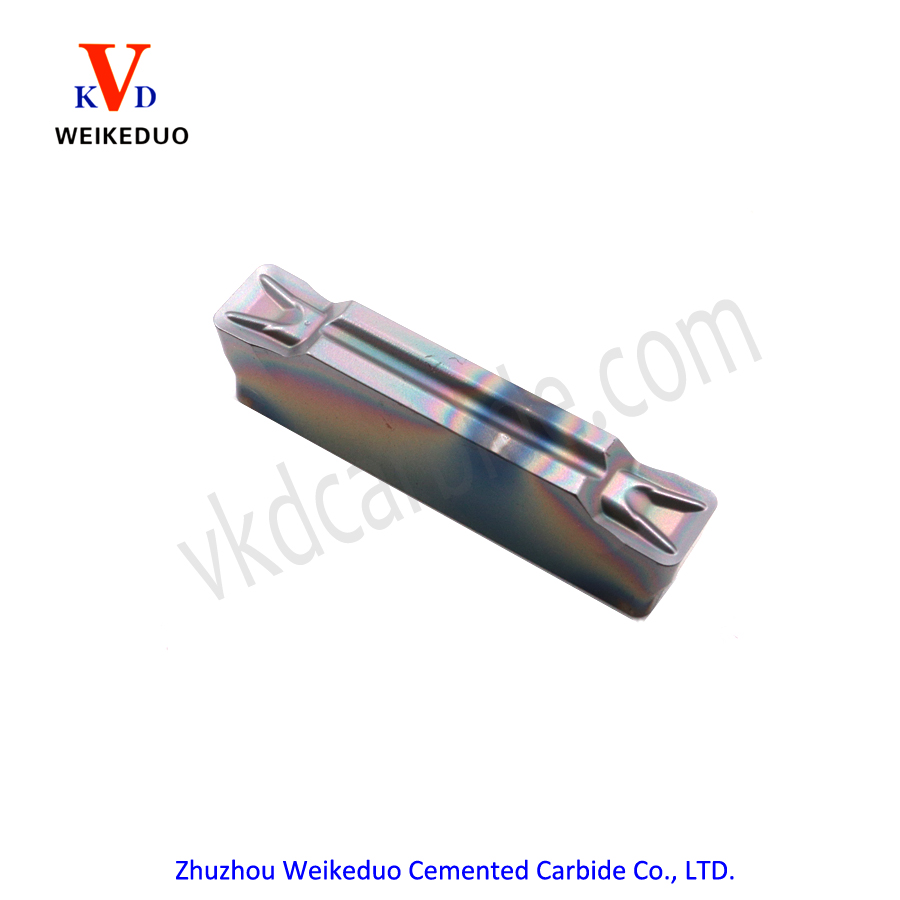

MGMN

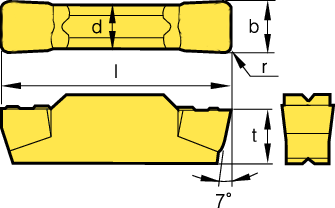

Size | b(mm) | r(mm) | lmm) | t(mm) | K(mm) |
MGMN150 | 1.5 | 0.15 | 16 | 1.2 | 3.5 |
MGMN200 | 2 | 0.2 | 16 | 1.6 | 3.5 |
MGMN250 | 2.5 | 0.2 | 18.5 | 2 | 3.85 |
MGMN300 | 3 | 0.4 | 21 | 2.35 | 4.8 |
MGMN400 | 4 | 0.4 | 21 | 3.3 | 4.8 |
MGMN500 | 5 | 0.8 | 26 | 4.1 | 5.8 |
MGMN600 | 6 | 0.8 | 26 | 4.2 | 5.8 |
Note: The dimensions and shape can be customized according to the customer's requirements.
Grade: ALL GRADE
ISO | Other | ||||||
SUITABLE | ● | ● | ● | ● | ● | ● | ● |
● -Priority ○ -Suitable
