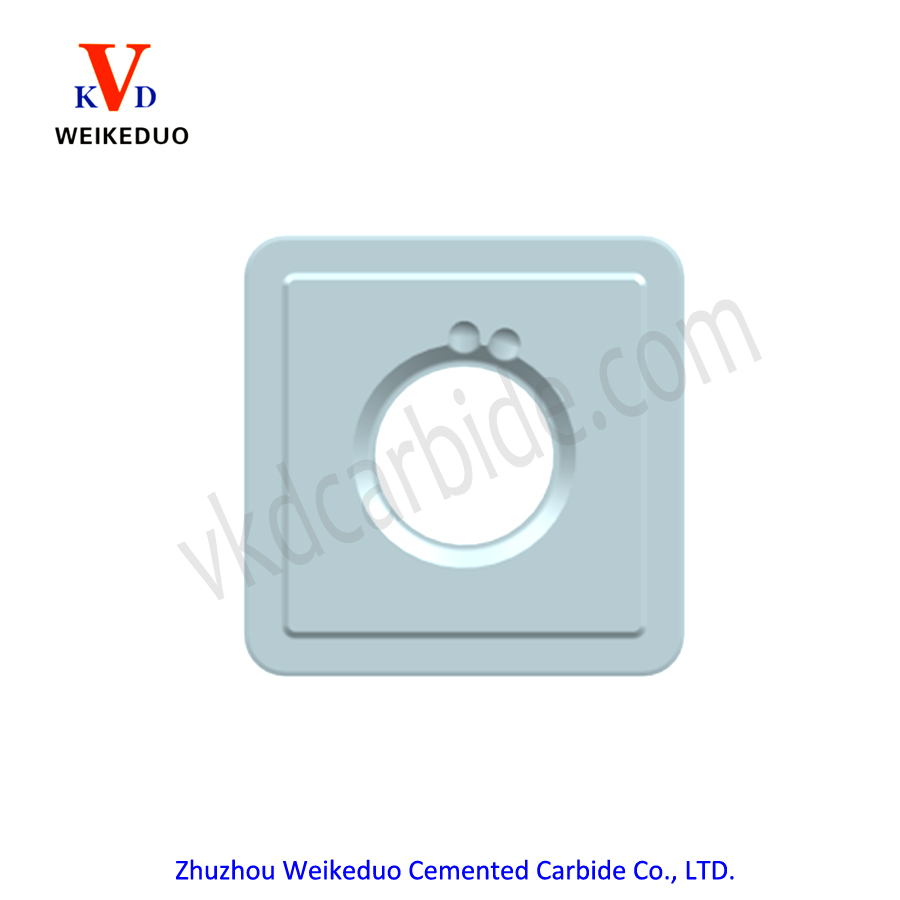

SNMA (-TR) Turning Inserts

ISO CNC Inserts. Suitable for Roughing ISO K material, especially for interrupted cutting.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

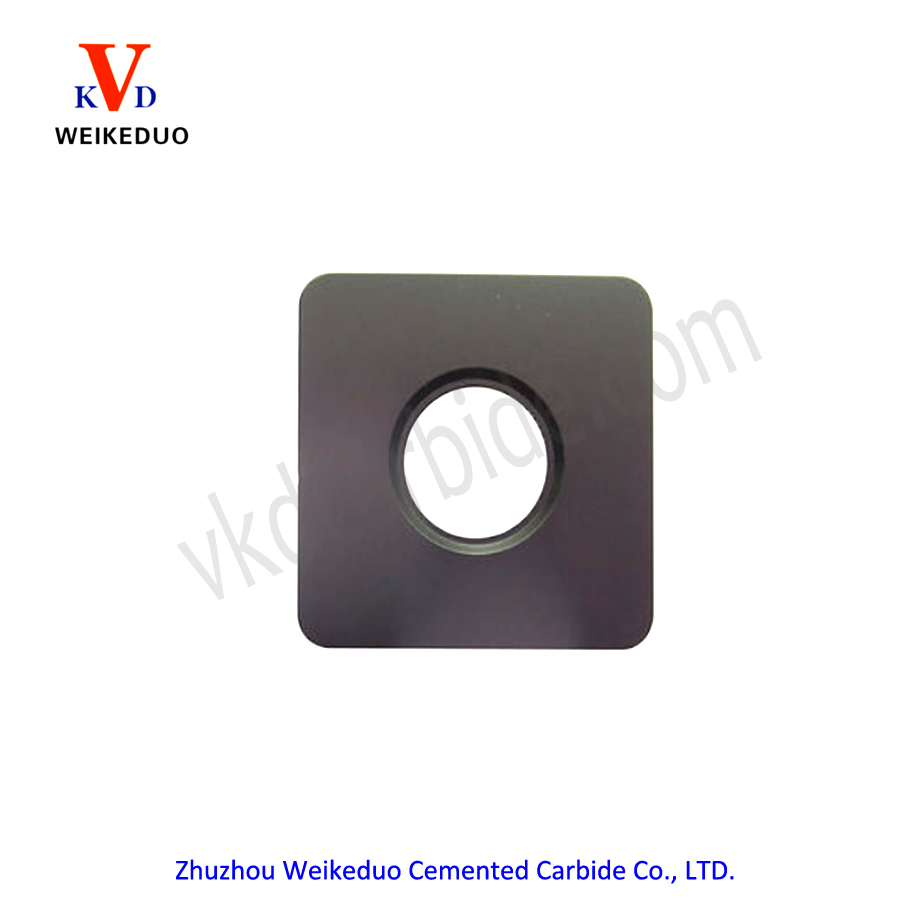

SNMA Turning Inserts

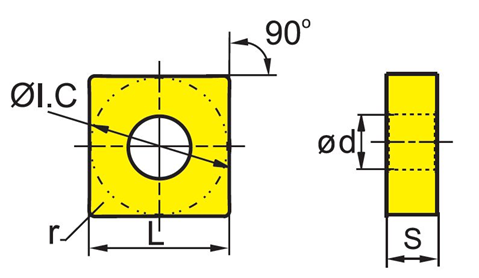

SNMA

SIZE	S	Φd	r
SNMA120404	4.76	5.16	0.4
SNMA120408	4.76	5.16	0.8
SNMA120412	4.76	5.16	1.2
SNMA120416	4.76	5.16	1.6
SNMA190612	6.35	7.94	1.2
SNMA190616	6.35	7.94	1.6

SNMA-TR

SIZE	S	Φd	r
SNMA120412-TR	4.76	5.16	1.2
SNMA120416-TR	4.76	5.16	1.6

SNMA Turning Inserts

SNMA (-TR) Turning Inserts

Grade: VKD3262

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel
	Stainless steel
	Cast lron				●
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
