TNMG-GMR/MB Turning Inserts

ISO CNC Inserts. Suitable for finishing and Semi-finishing ISO P M K material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

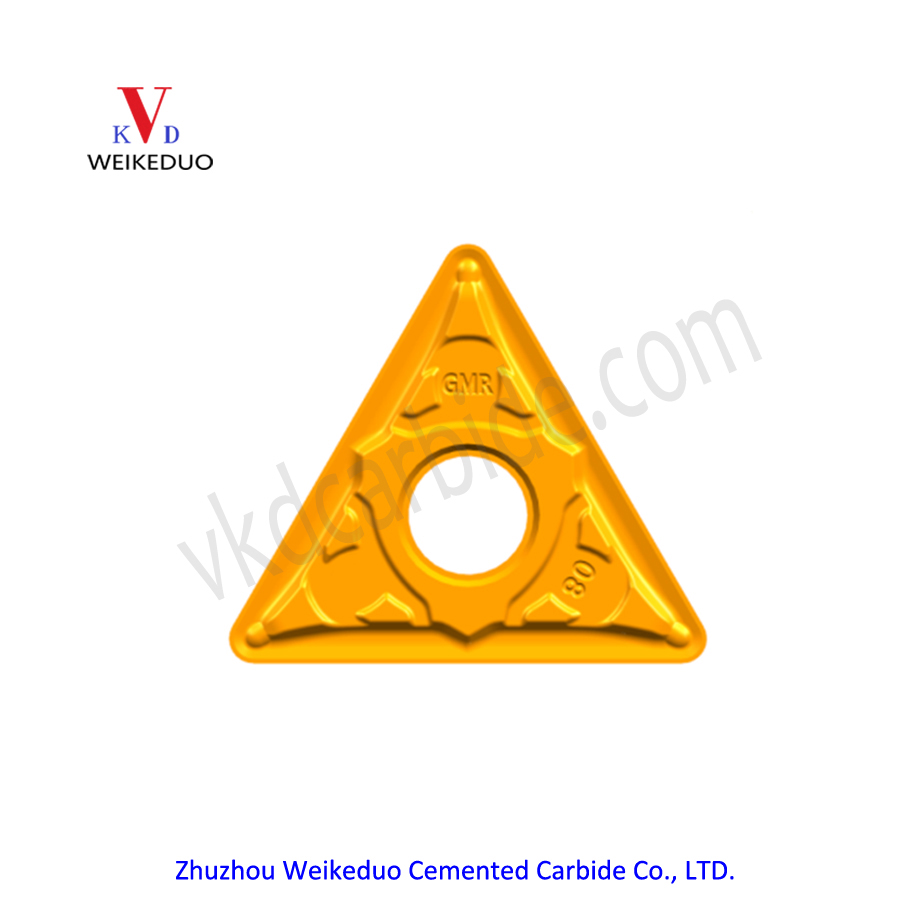

TNMG-GMR Turning Inserts

TNMG - GMR

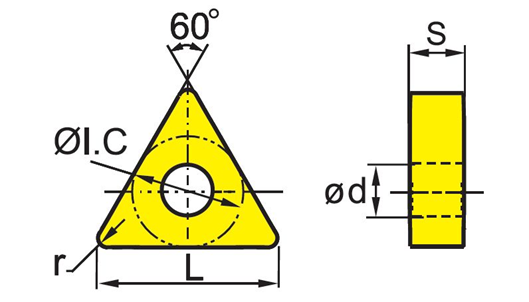

SIZE	S	Φd	r
TNMG160404-GMR	4.76	3.81	0.4
TNMG160408-GMR	4.76	3.81	0.8
TNMG160412-GMR	4.76	3.81	1.2

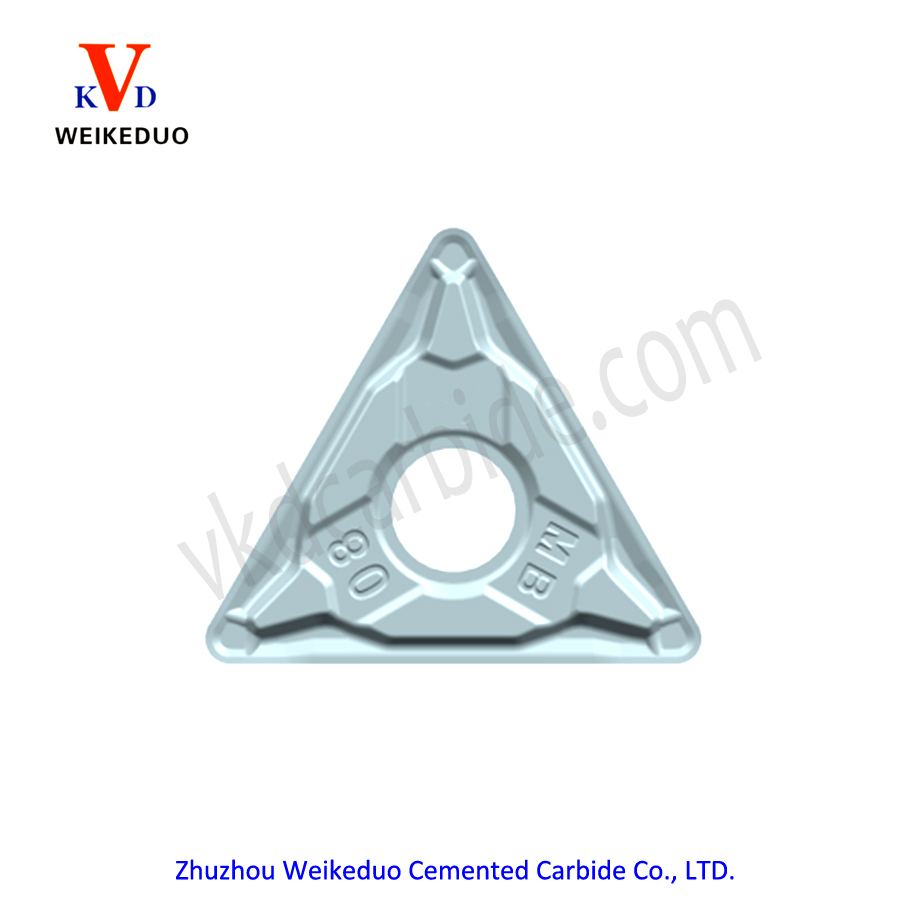

TNMG - MB

SIZE	S	Φd	r
TNMG160404-MB	4.76	3.81	0.4
TNMG160408-MB	4.76	3.81	0.8
TNMG160412-MB	4.76	3.81	1.2
TNMG220404-MB	4.76	5.16	0.4
TNMG220408-MB	4.76	5.16	0.8
TNMG220412-MB	4.76	5.16	1.2

TNMG-GMR Turning Inserts

Grade: VKD1153/VKD1253/VKD1373 VKD8204/VKD8284/VKD8286

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel		●	●
	Stainless steel		●	●
	Cast lron		●	●
	Nonferrous Material		○	○
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
