TNMG-PF-K Turning inserts

ISO CNC Inserts. Suitable for finishing ISO P material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

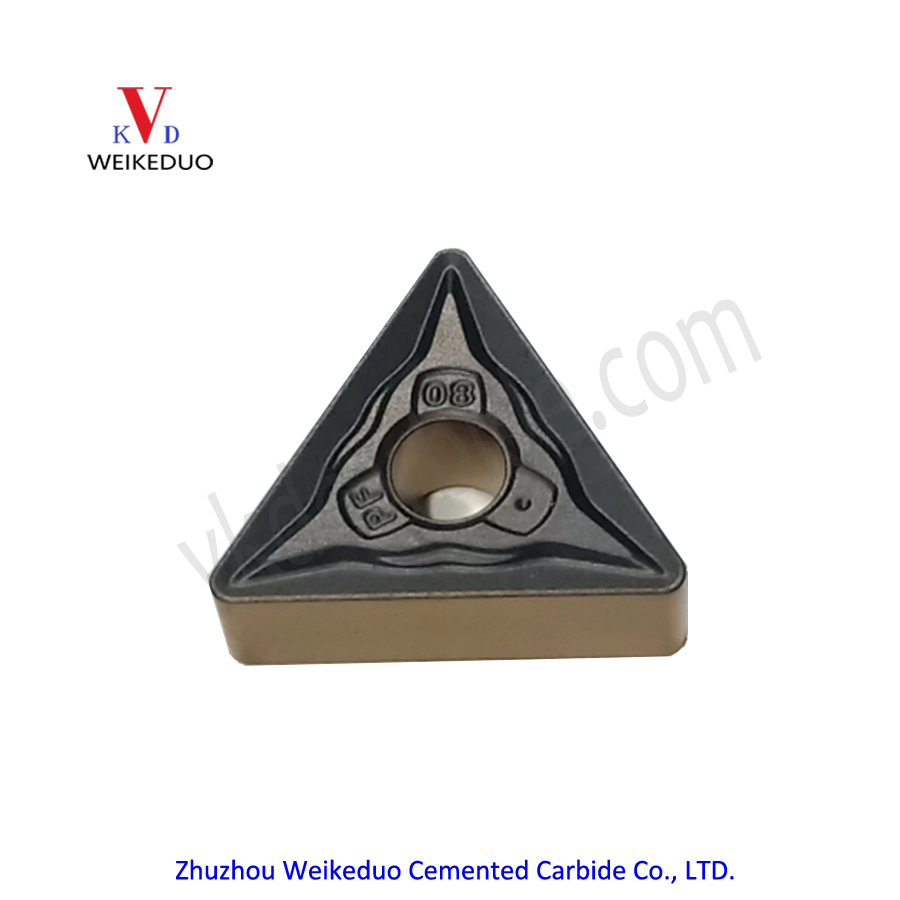

TNMG160408-PF-K

TNMT -PF-K

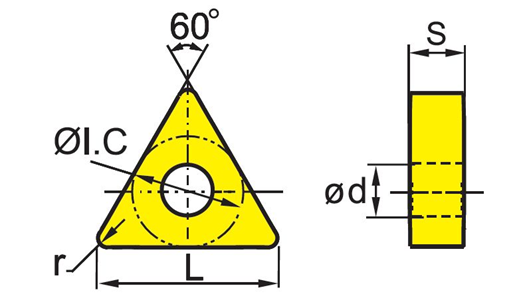

SIZE	S	Φd	r
TNMG160404-PF-K	4.76	3.81	0.4
TNMG160408-PF-K	4.76	3.81	0.8

TNMG-PF-K

Grade: VKD1153 VKD1253

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel		●
	Stainless steel		○
	Cast lron		●
	Nonferrous Material		○
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
