CNMA Turning Inserts

ISO CNC Inserts. Suitable for Roughing ISO K material, especially for interrupted cutting.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

CNMG

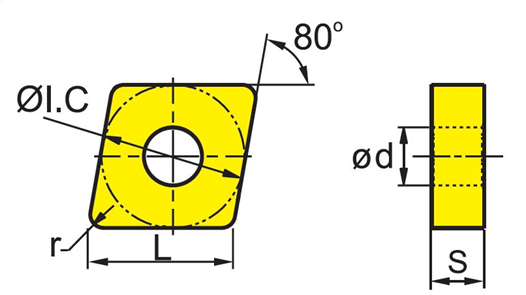

SIZE	S	Φd	r
CNMG120404	4.76	5.16	0.4
CNMG120408	4.76	5.16	0.8
CNMG120412	4.76	5.16	1.2
CNMG120416	4.76	5.16	1.6
CNMG160612	6.35	6.35	1.2
CNMG160616	6.35	6.35	1.6
CNMG190608	6.35	7.94	0.8

CNMA Turning Inserts

Grade: VKD3262

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel
	Stainless steel
	Cast lron				●
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
