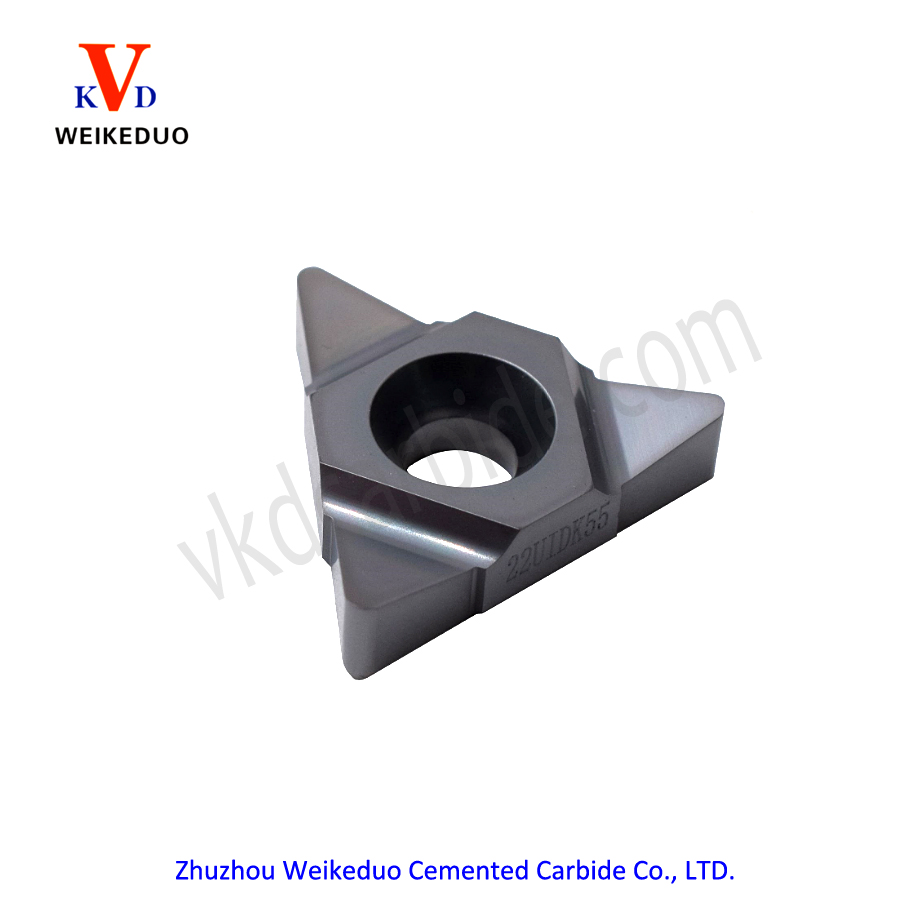

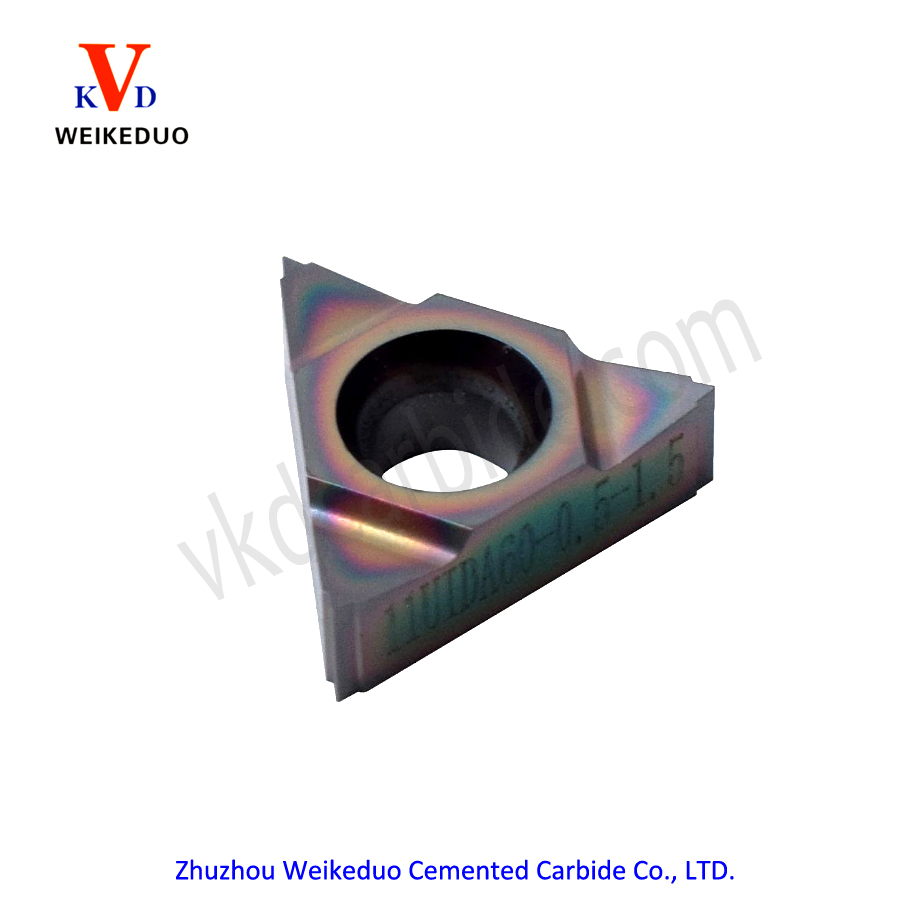

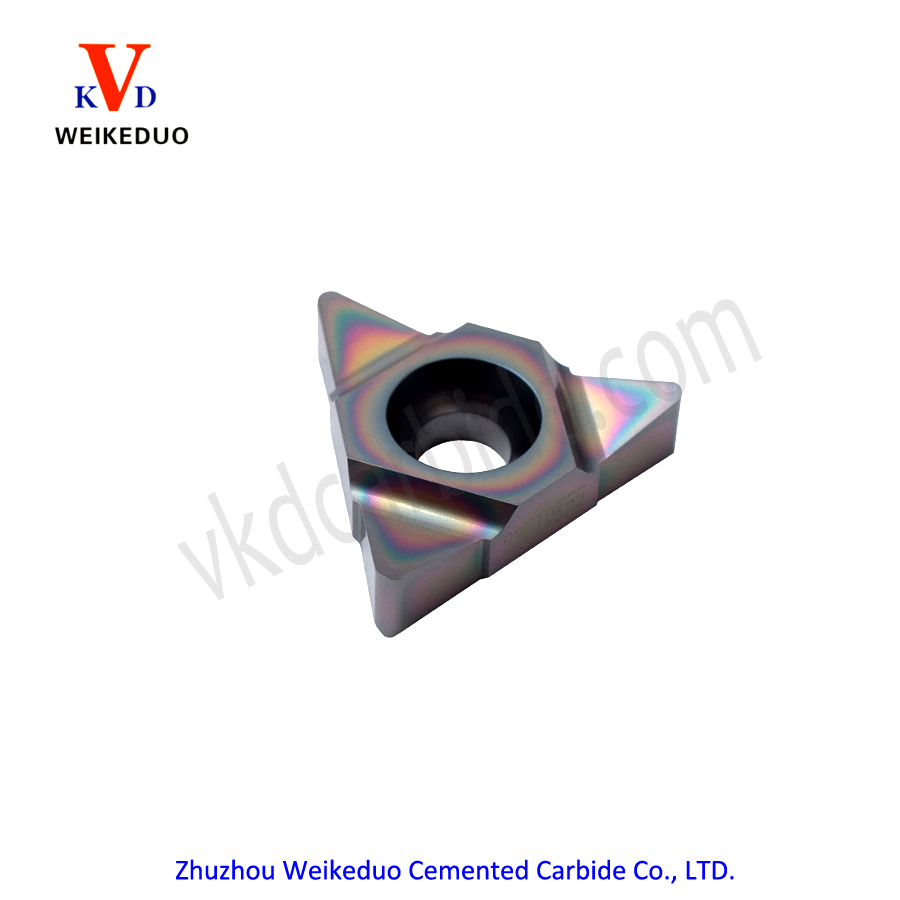

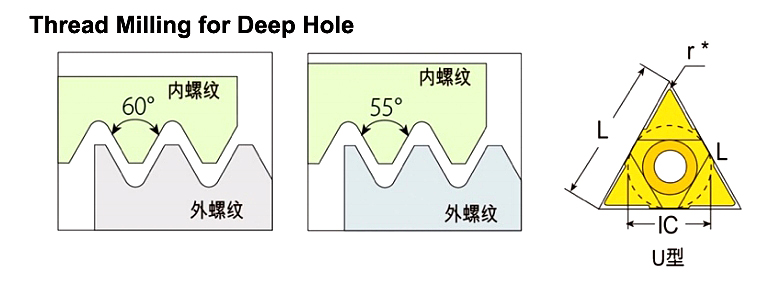

Thread Milling for Deep Hole

Thread Inserts. Suitable for ISO K/P/M/N/S/H material. Triangle positioning makes the insert and insert slot closely fitting, avoiding the problem of cdges broken since the insert loosing. Each insert independent water holes to make deep hole processing inner cooling, suitable for diferent materials, finishing and sem-finishing，high universality and wide range of applications.

Thread Inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

Grade: ALL GRADE

ISO							Other
SUITABLE	●	●	●	●	●	●	●

● -Priority ○ -Suitable

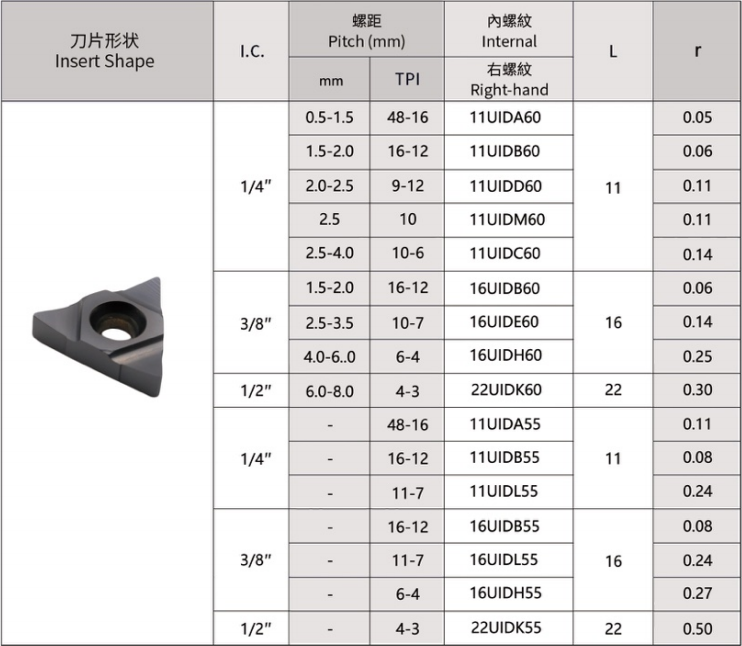

Pitch Range:0.5mm-8.0mm /48-3 TPI

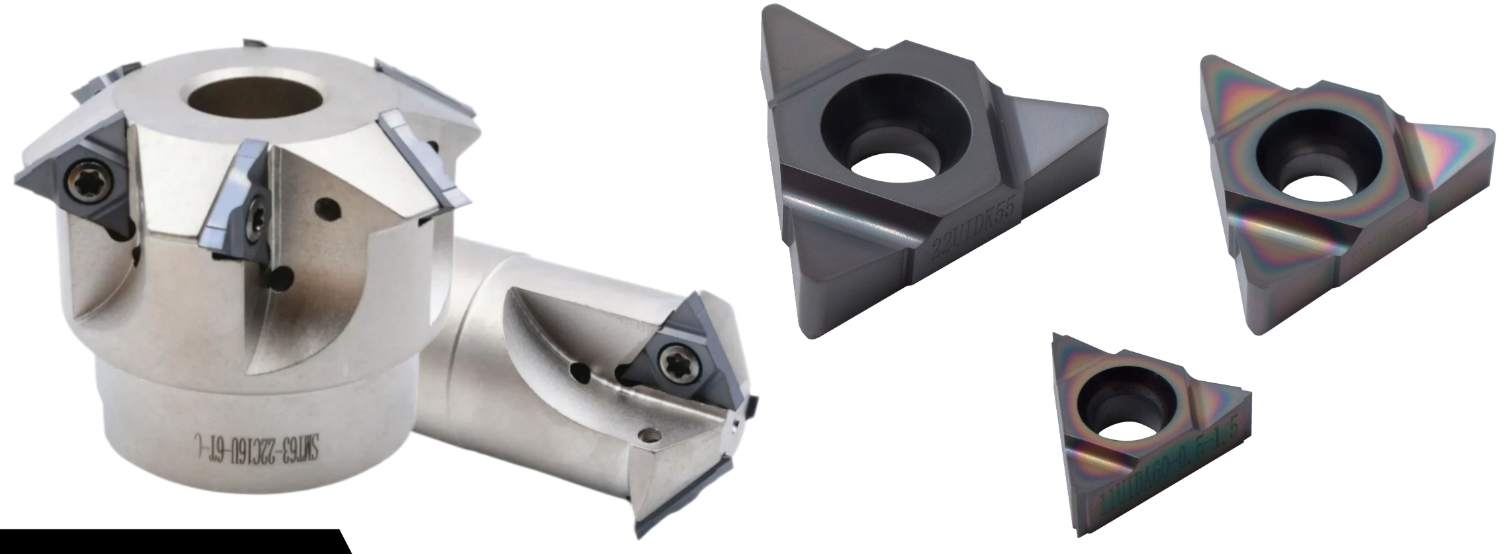

The inserts are fuly-ground. With high hardness, sharp edges, the inserts are anti-vibration, wear resistance, hard to edges chipping,smooth chip breaking,and efficient cutting.

This excellent insert is suitable for high hardness, high-speed cutting and diferent materials, steel between HRC55° - HRC58", hardened materials, nickel-based alloys and other materials, Apply this insert can effectively reduce the frequency of tool changes, save processing time and improve processing efficiency during high-speed processing.
