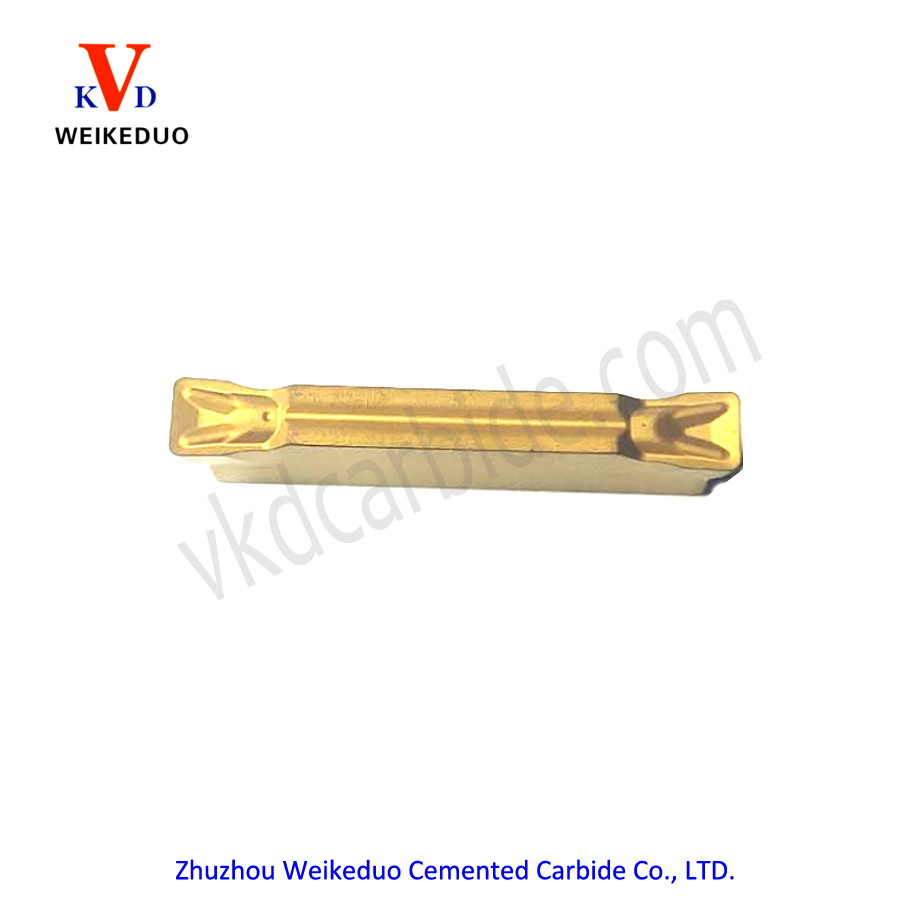

MGMN-T Cutting Inserts

Grooving & Parting Inserts. Suitable for ISO K/P/M material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

MGMN-T

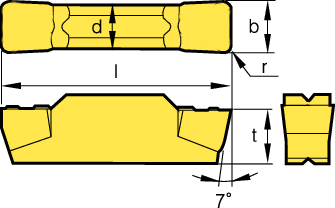

Size	b(mm)	r(mm)	l(mm)	t(mm)	K(mm)
MGMN200-T	2	0.2	16	1.6	3.5
MGMN300-T	3	0.4	21	2.35	4.8
MGMN400-T	4	0.4	21	3.3	4.8

Note: The dimensions and shape can be customized according to the customer's requirements.

MGMN-T Cutting Inserts

Grade: VKD721/VKD137/VKD118

ISO							Other
SUITABLE	●	●	●	○			○

● -Priority ○ -Suitable
