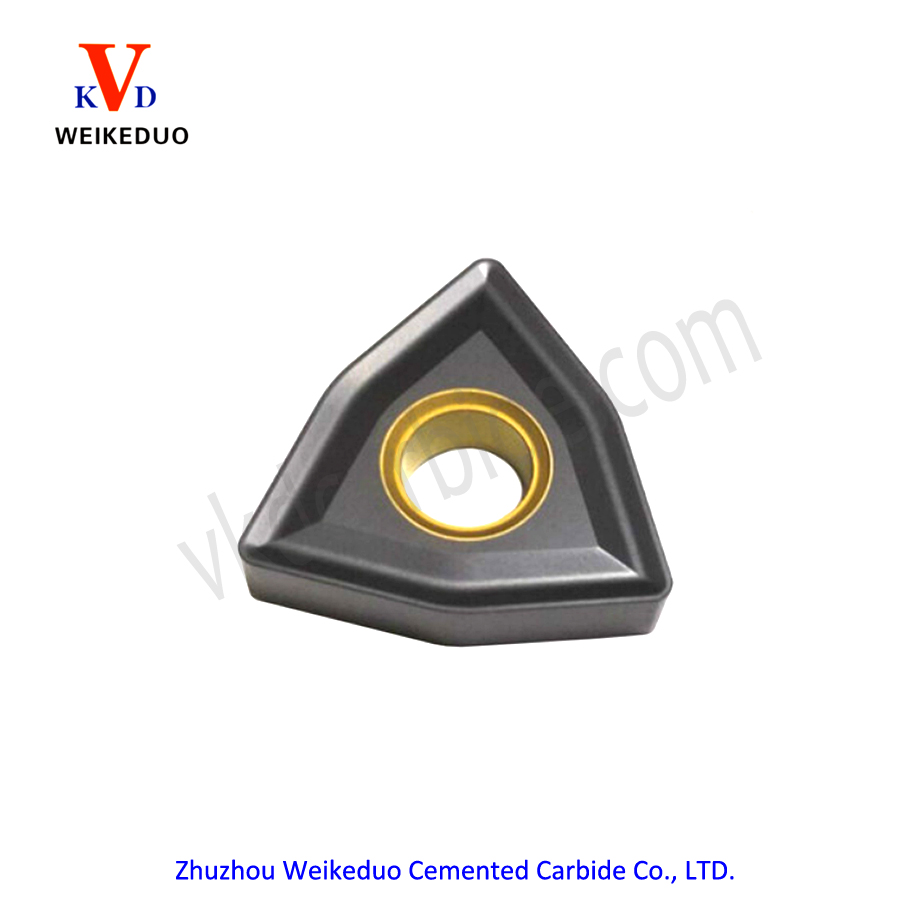

WNMG-UC Turning Inserts

ISO CNC Inserts. Suitable for Semi-finishing ISO K material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

WNMG-UC

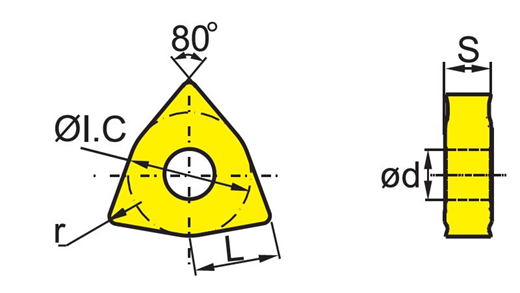

SIZE	S	Φd	r
WNMG080404-UC	4.76	5.16	0.4
WNMG080408-UC	4.76	5.16	0.8
WNMG080412-UC	4.76	5.16	1.2

WNMG-UC Turning Inserts

Grade: VKD3262

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel			○
	Stainless steel
	Cast lron			●	○
	Nonferrous Material			○
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
