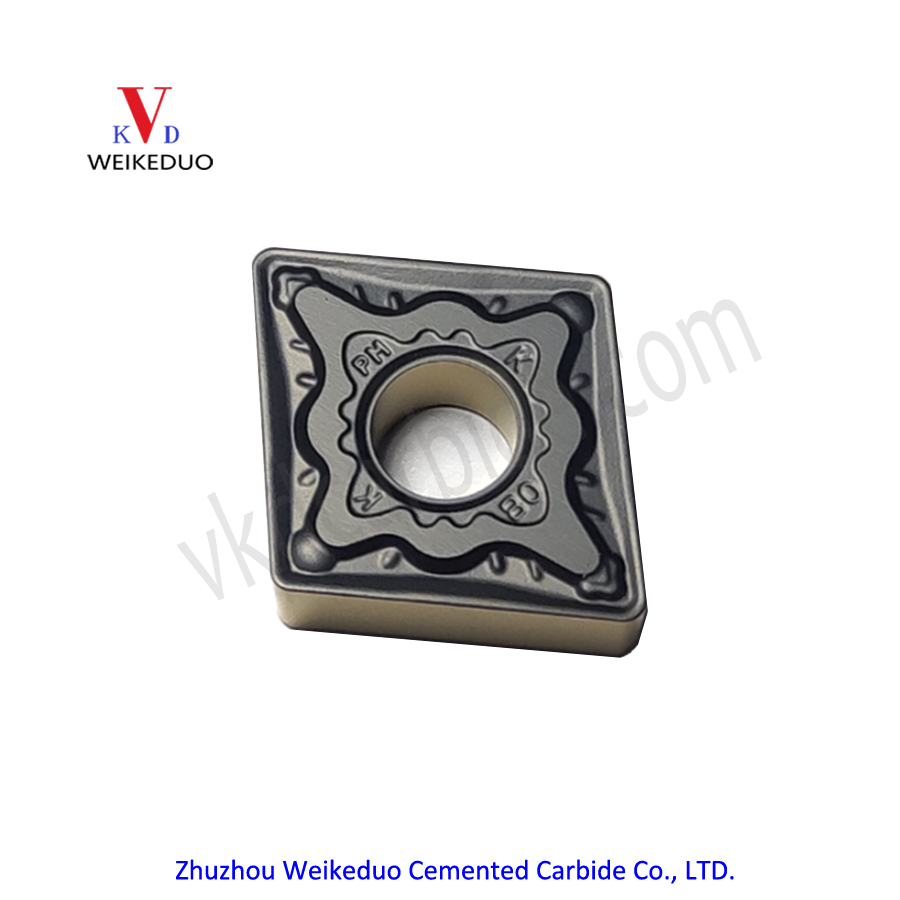

CNMG-PMK Turning Inserts

ISO CNC Inserts. Suitable for semi-finishing and Roughing ISO P/K material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

CNMG - PMK

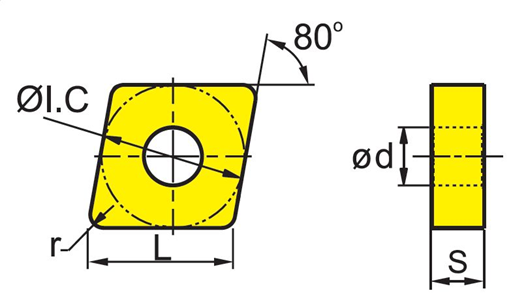

SIZE	S	Φd	r
CNMG120404-PMK	4.76	5.16	0.4
CNMG120408-PMK	4.76	5.16	0.8
CNMG120412-PMK	4.76	5.16	1.2
CNMG190608-PMK	6.35	7.94	0.8
CNMG190612-PMK	6.35	7.94	1.2

CNMG-PMK

Grade: VKD1252(Black)/ VKD1253(Double Color)

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel			●	●
	Stainless steel
	Cast lron			●	●
	Nonferrous Material			○	○
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
