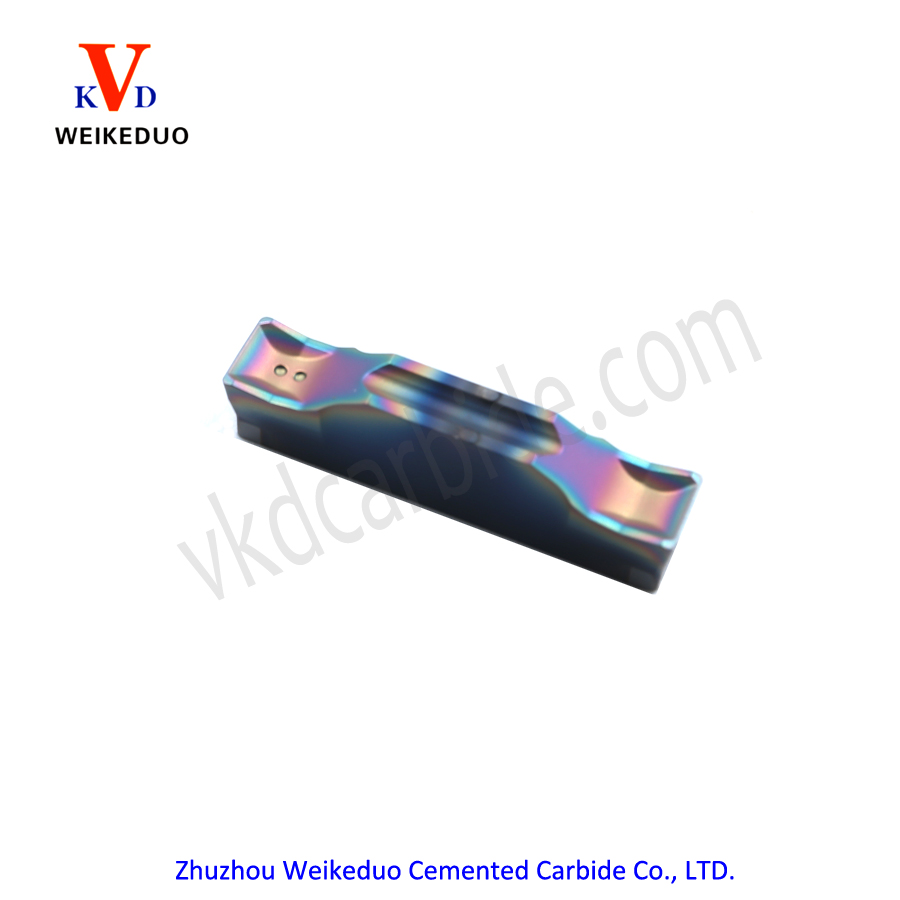

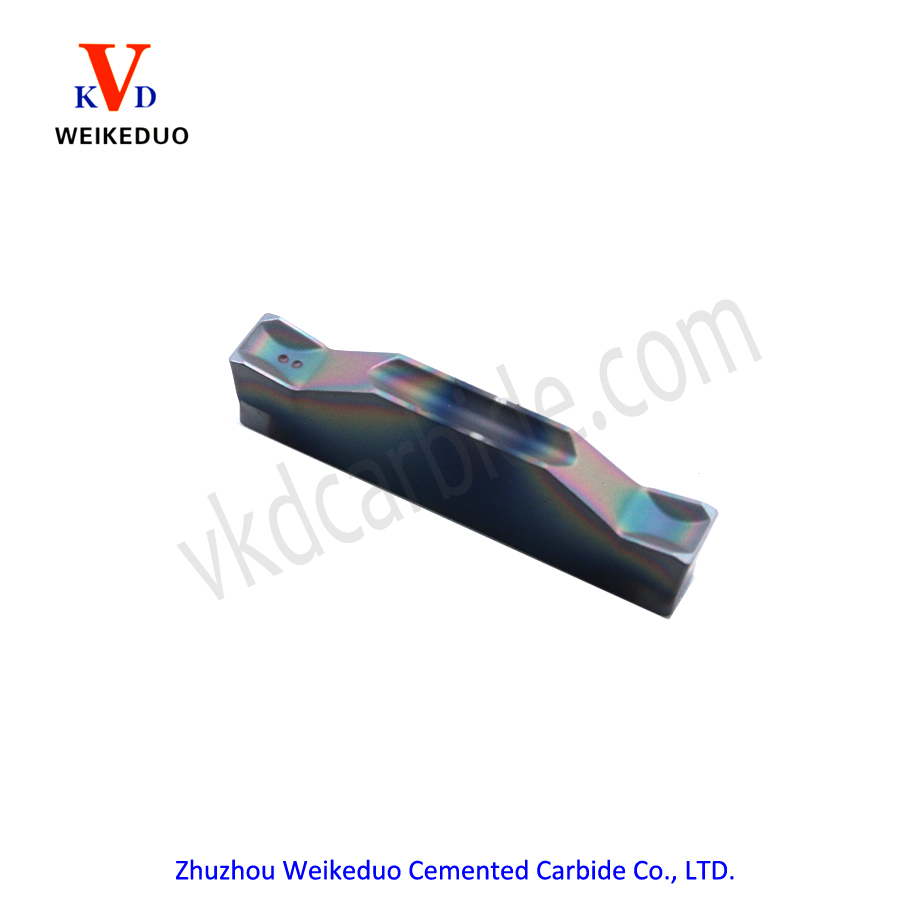

TD-C Cutting Inserts

Grooving & Parting Inserts. Suitable for ISO K/P/M/N/S/H material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

TD-C

Size	W(mm)	R(mm)	L(mm)	H(mm)	K(°)
TD-200-C	2	0.2	20	4	0
TD-300-C	3	0.2	20	5	0
TD-400-C	4	0.3	20	5	0

Note: The dimensions and shape can be customized according to the customer's requirements.

TD-C Cutting Inserts

Grade: ALL GRADE

ISO							Other
SUITABLE	●	●	●	●	●	●	●

● -Priority ○ -Suitable
