CCMT-MM Turning Inserts

ISO CNC Inserts. Positive Inserts. Suitable for Semi-finishing ISO M material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

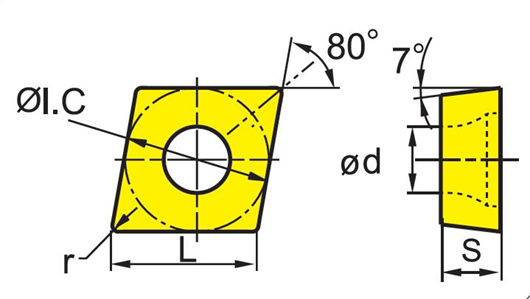

CCMT-MM

SIZE	S	Φd	r
CCMT060204-MM	2.38	2.8	0.4
CCMT060208-MM	2.38	2.8	0.8
CCMT09T304-MM	3.97	4.4	0.4
CCMT09T308-MM	3.97	4.4	0.8

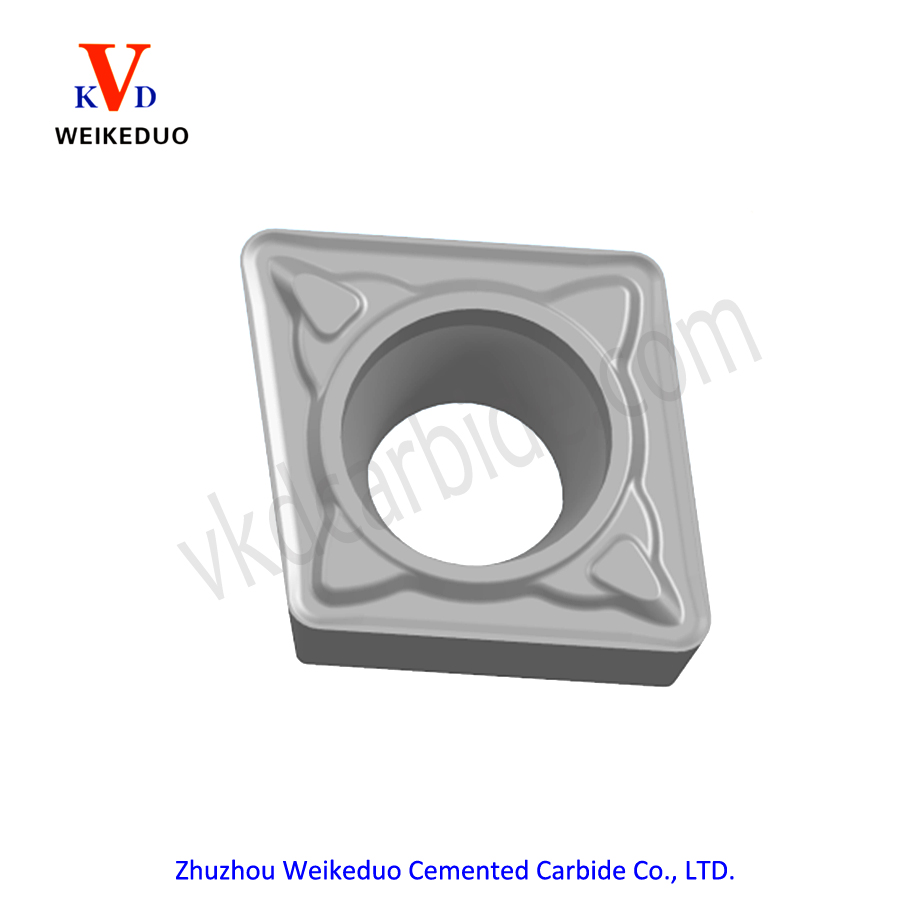

CCMT-MM Turning Inserts

Grade: VKD8206/VKD8286

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel			●	○
	Stainless steel			●	○
	Cast lron			○
	Nonferrous Material			○
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
