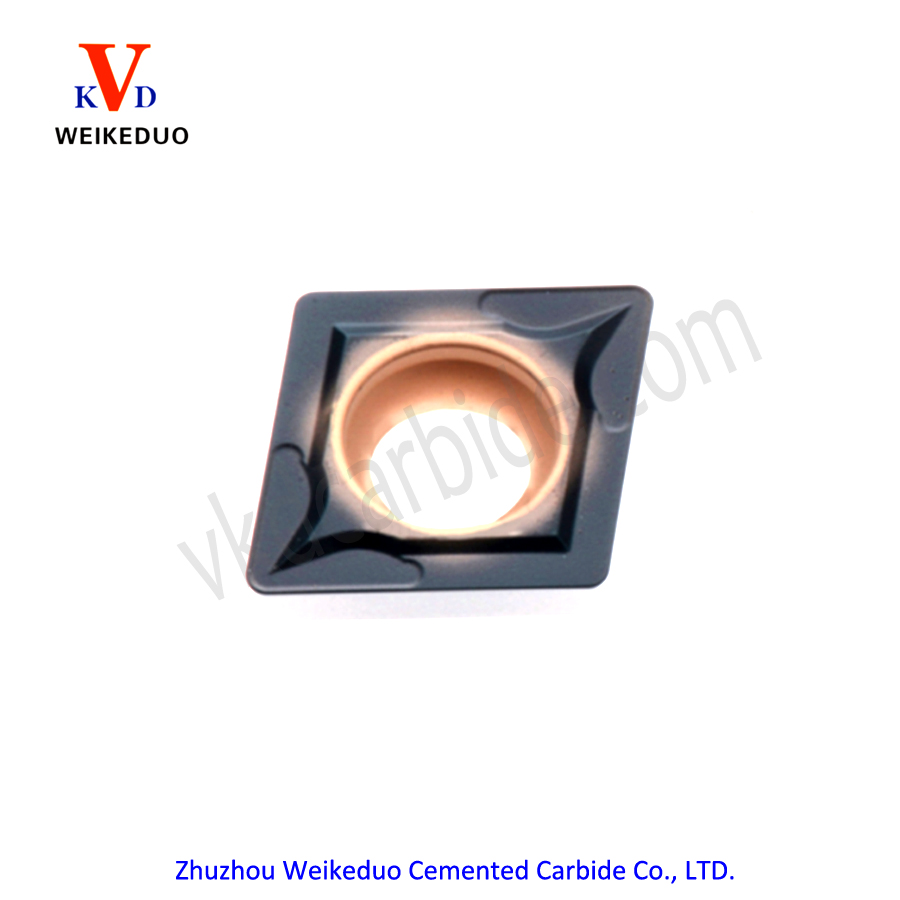

CCMT-UC Turning Inserts

ISO CNC Inserts. Suitable for Semi-finishing ISO K material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

CCMT-UC

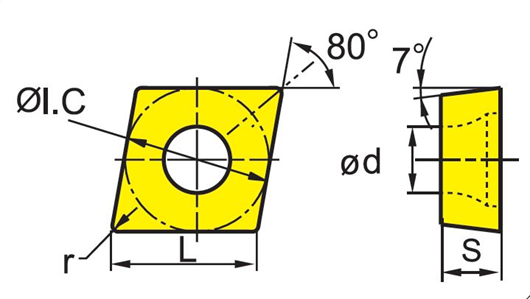

SIZE	S	Φd	r
CCMT060204-UC	2.38	2.8	0.4
CCMT060208-UC	2.38	2.8	0.8
CCMT09T304-UC	3.97	4.4	0.4
CCMT09T308-UC	3.97	4.4	0.8
CCMT120404-UC	4.76	5.56	0.4
CCMT120408-UC	4.76	5.56	0.8

CCMT-UC Turning Inserts

Grade: VKD3262

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel			○
	Stainless steel
	Cast lron			●	○
	Nonferrous Material			○
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
