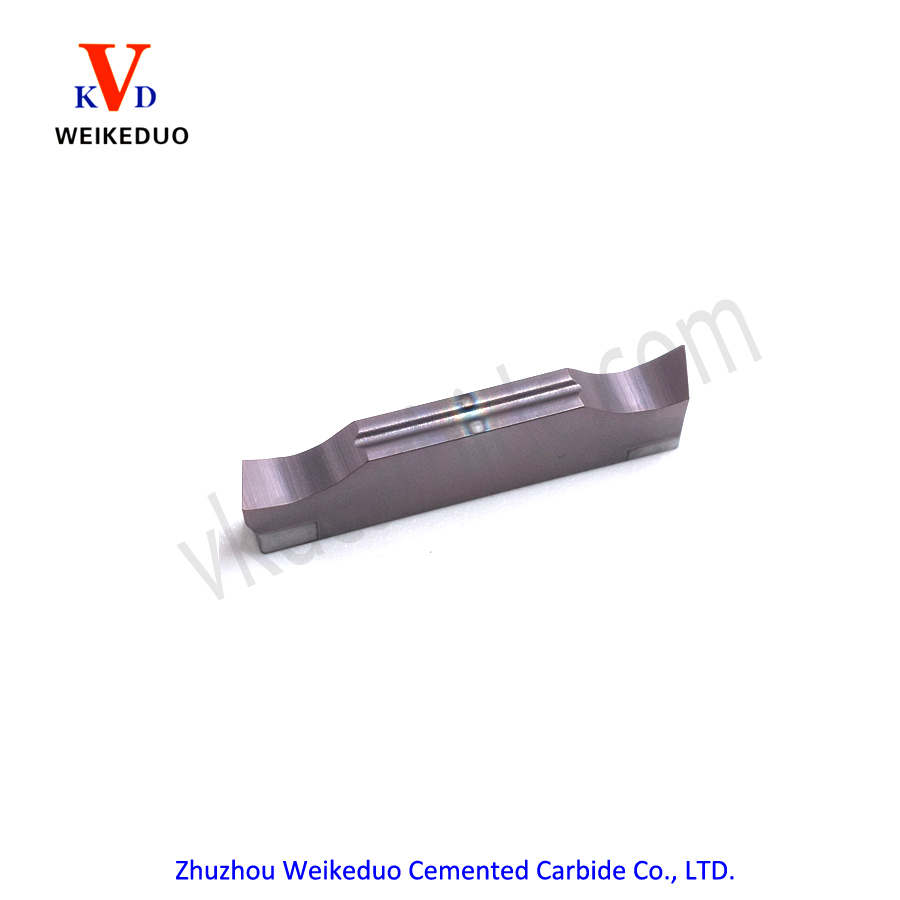

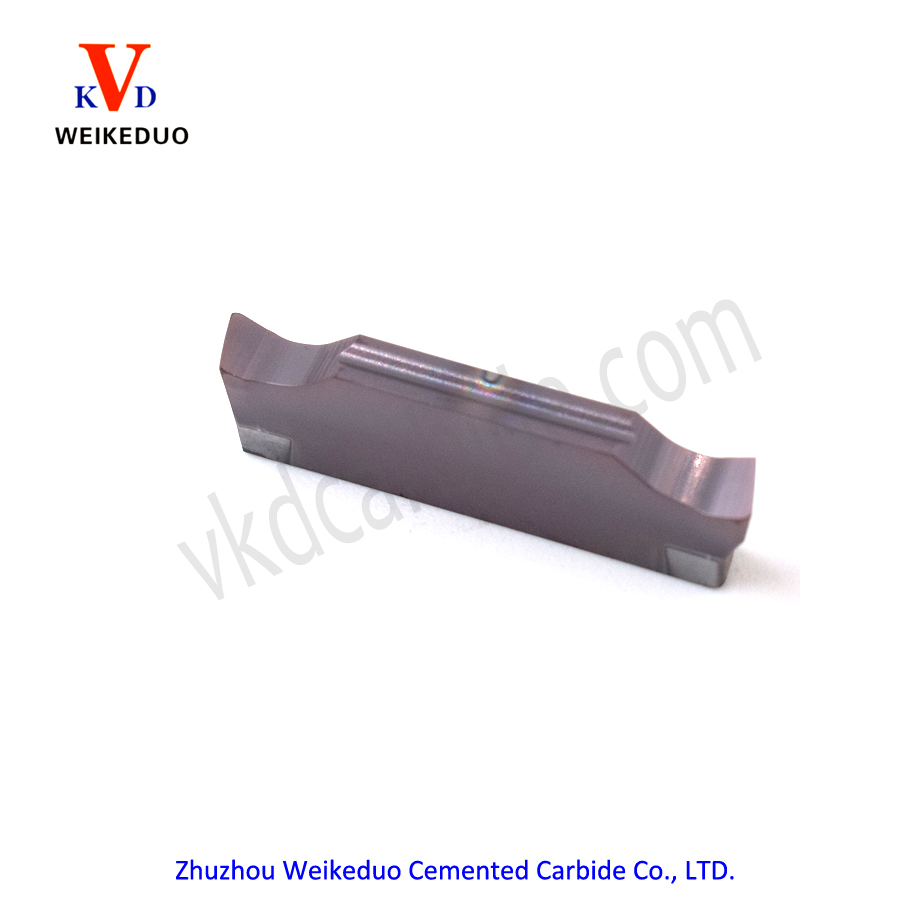

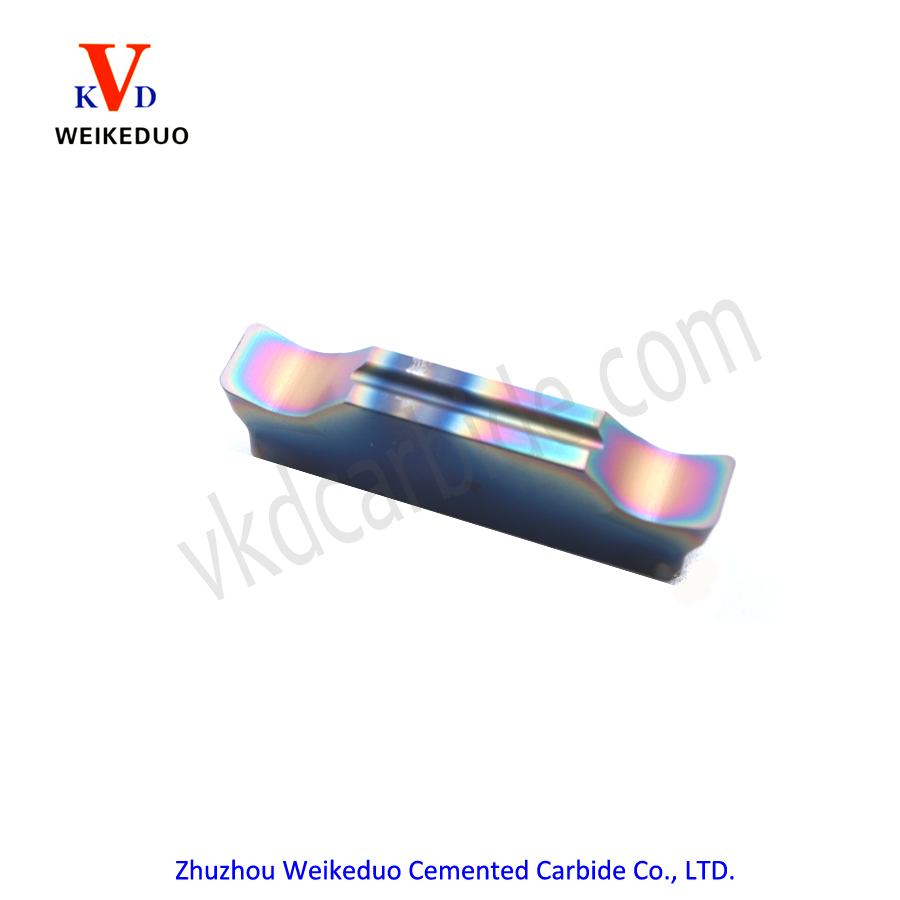

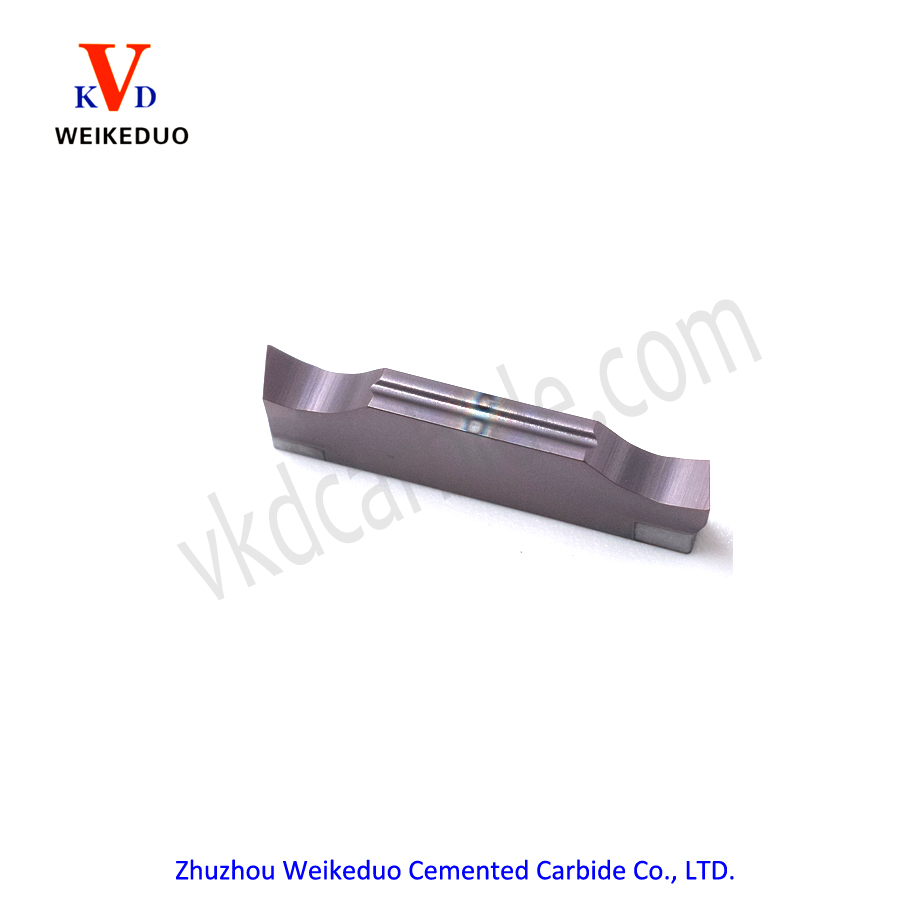

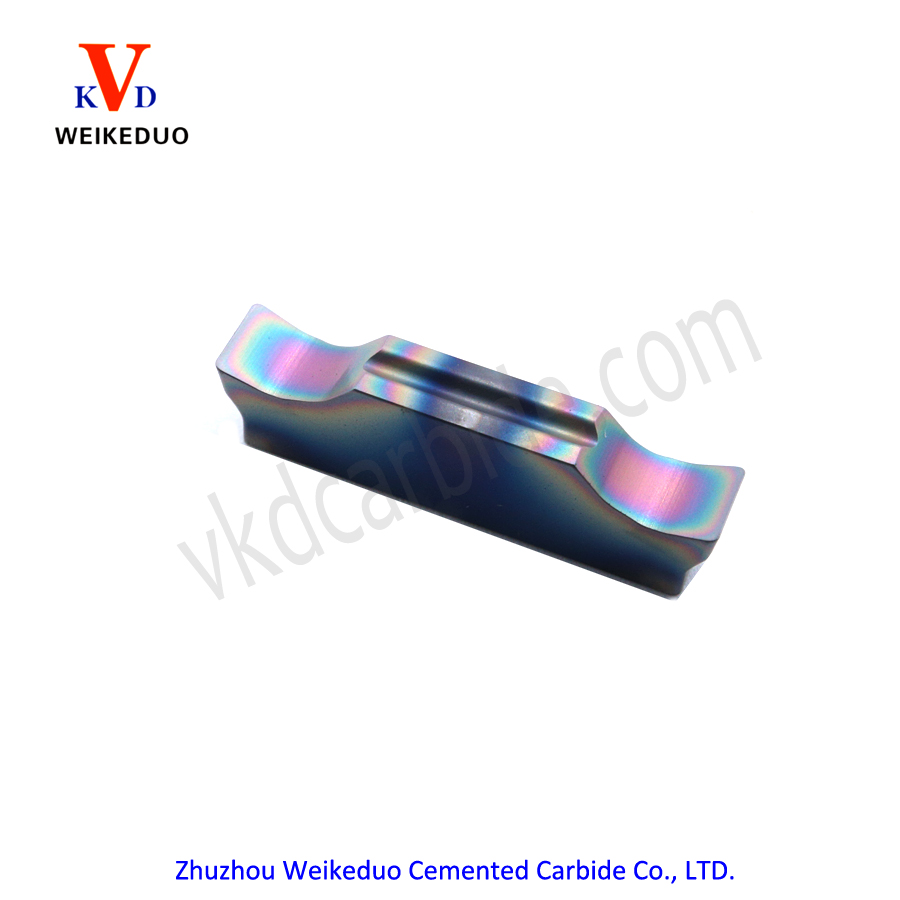

MGGN Cutting Inserts

Grooving & Parting Inserts. Suitable for ISO K/P/M/N/S/H material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

MGGN

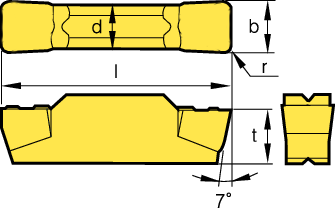

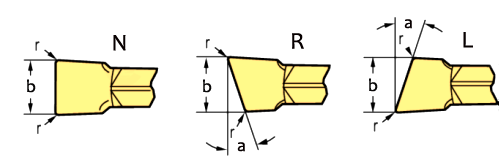

Size	b(mm)	r(mm)	l(mm)	t(mm)	K(mm)
MGGN150	1.5	0.15	16	1.2	3.5
MGGN200	2	0.2	16	1.6	3.5
MGGN250	2.5	0.2	18.5	2	3.85
MGGN300	3	0.4	21	2.35	4.8
MGGN400	4	0.4	21	3.3	4.8
MGGN500	5	0.8	26	4.1	5.8

Note: The dimensions and shape can be customized according to the customer's requirements.

Grade: ALL GRADE

ISO							Other
SUITABLE	●	●	●	●	●	●	●

● -Priority ○ -Suitable
