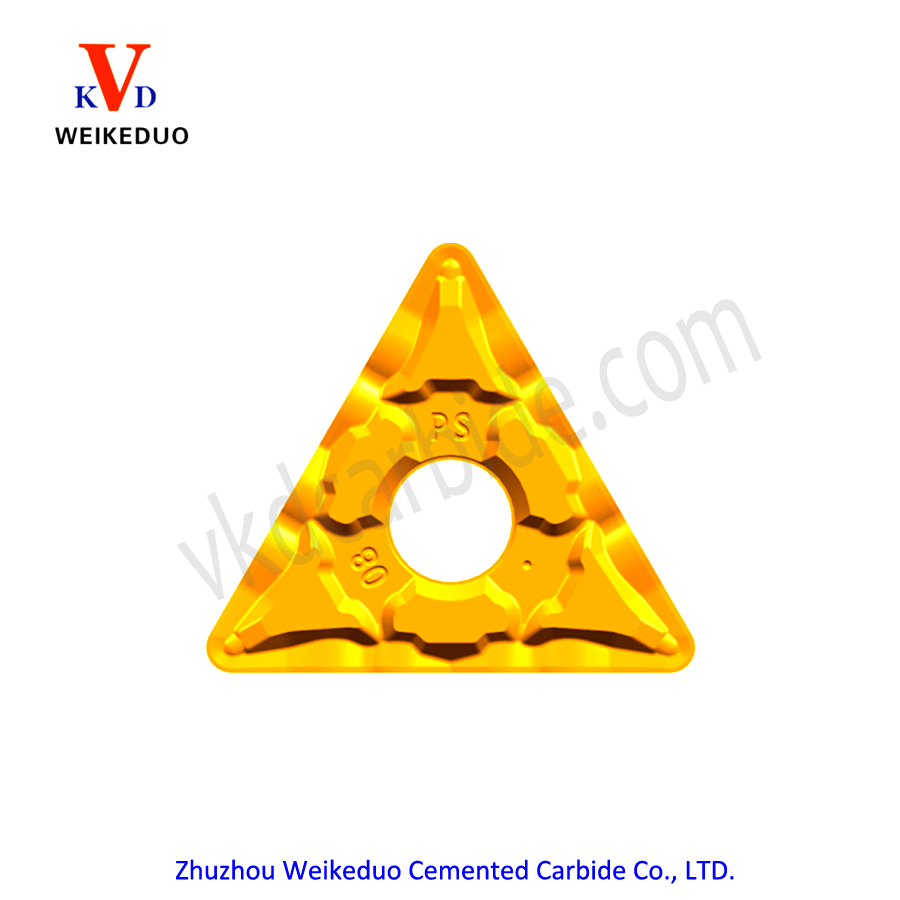

TNMG-PS Turning Inserts

ISO CNC Inserts. Suitable for finishing and Semi-finishing ISO P/K material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

TNMG - PS

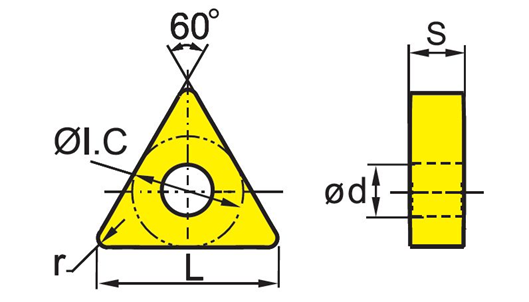

SIZE	S	Φd	r
TNMG160404-PS	4.76	3.81	0.4
TNMG160408-PS	4.76	3.81	0.8
TNMG160412-PS	4.76	3.81	1.2

TNMG-PS Turning Inserts

Grade: VKD1153 VKD1253

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel		●	●
	Stainless steel
	Cast lron		●	●
	Nonferrous Material		○	○
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
