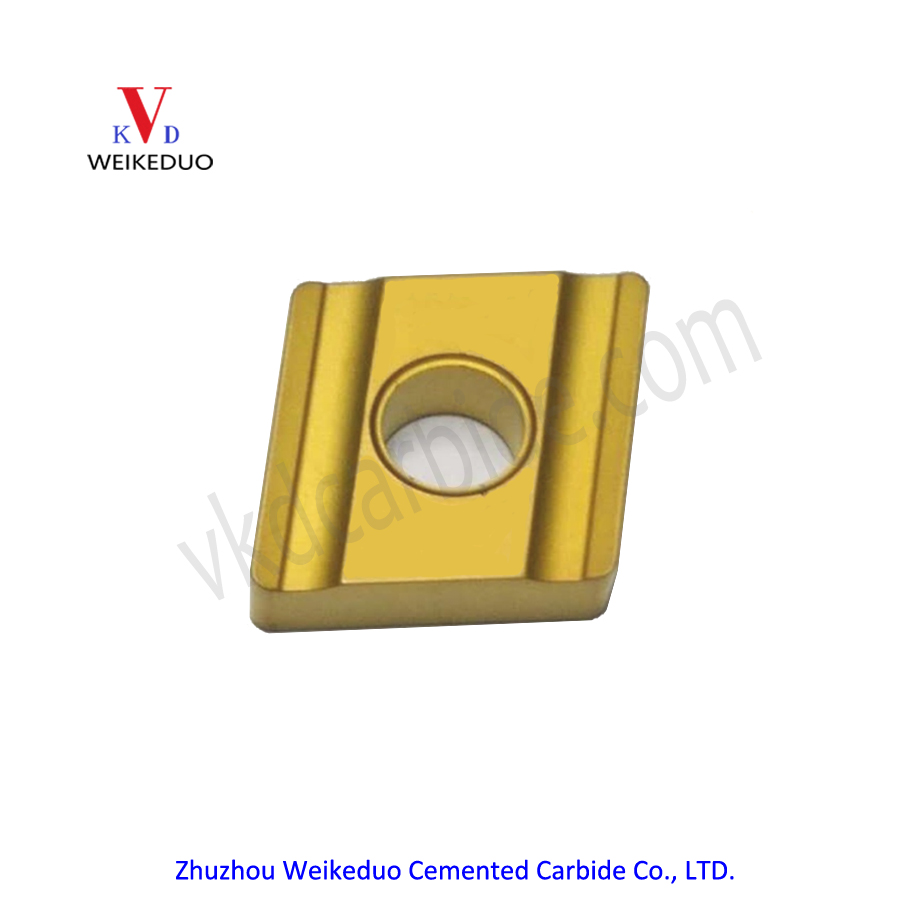

CNMG-R/L-X Turning Inserts

ISO CNC Inserts. Suitable for Roughing ISO P material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

CNMG - R/L-X

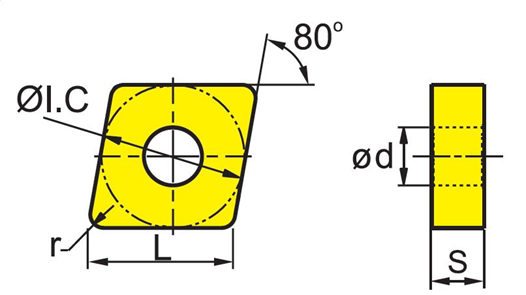

SIZE	S	Φd	r
CNMG120404R-X	4.76	5.16	0.4
CNMG120404L-X	4.76	5.16	0.4
CNMG120408R-X	4.76	5.16	0.8
CNMG120408R-X	4.76	5.16	0.8

CNMG-R/L-X

Grade: VKD1252(Black)/VKD1253(Double Color)

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel				●
	Stainless steel
	Cast lron				●
	Nonferrous Material				○
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
